IR Lenses
Shanghai Optics offers a comprehensive portfolio of custom and in-stock infrared (IR) lenses for SWIR, MWIR, LWIR, and NIR imaging systems. Whether you need a ready-to-ship stock lens for rapid prototyping or a fully customized optical solution for OEM production, we deliver high-performance infrared optics backed by over 55 years of optical manufacturing expertise. Browse our Stock Products for immediate availability or explore our Technical Specifications to learn more about our optical design, manufacturing, and testing capabilities.

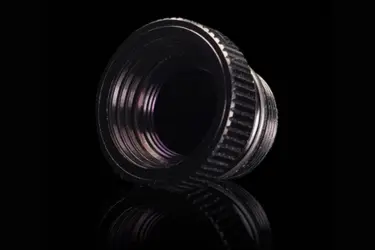

NIR Lenses
| Wavelength (μm) | EFL (mm) | F# | FOV | Sensor | PN | Price (USD) | Delivery Time | Request a Quote |
|---|---|---|---|---|---|---|---|---|
| 0.9-1.7 | 17 | 2 | 79.2°(D) | 6000X4000, 3.9μm | SOIR-0001 | Contact us | Please Consult | Request a Quote |
| 0.9-1.7 | 25 | 1.4 | 44.6°(D) | 640X480, 25μm | SOIR-0002 | Contact us | Please Consult | Request a Quote |
| 0.9-1.7 | 200 | 2.4 | 3.5°(D) | 640X512, 15μm | SOIR-0003 | Contact us | Please Consult | Request a Quote |
| 0.9-1.7 | 12.5 | 1.4/16 | 37°(D) | 640X512, 15μm | SOIR-0004 | Contact us | Please Consult | Request a Quote |
| 0.9-1.7 | 17 | 2 | 79.2°(D) | 6000X4000, 3.9μm | SOIR-0005 | Contact us | Please Consult | Request a Quote |
| 0.9-1.7 | 75 | 1.5 | 9.4°(D) | 640X512, 15μm | SOIR-0006 | Contact us | Please Consult | Request a Quote |
| 0.9-1.7 | 200 | 2.4 | 3.5°(D) | 640X512, 15μm | SOIR-0007 | Contact us | Please Consult | Request a Quote |

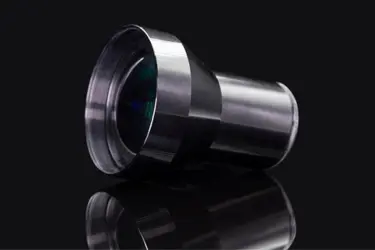

SWIR Lenses
| Wavelength (μm) | EFL (mm) | F# | FOV | Sensor | PN | Price (USD) | Delivery Time | Request a Quote |
|---|---|---|---|---|---|---|---|---|
| 1-3 | 12 | 3 | 54°(D) | 640X512, 15μm | SOIR-0008 | Contact us | Please Consult | Request a Quote |
| 1-3 | 23 | 2 | 30°(D) | 320X256, 30μm | SOIR-0009 | Contact us | Please Consult | Request a Quote |
| 1-3 | 25 | 2.5 | 26°(D) | 320X256, 30μm | SOIR-0010 | Contact us | Please Consult | Request a Quote |
| 1-3 | 35 | 2 | 10°(D) | 320X256, 30μm | SOIR-0011 | Contact us | Please Consult | Request a Quote |
| 1-3 | 50 | 2 | 14°(D) | 320X256, 30μm | SOIR-0012 | Contact us | Please Consult | Request a Quote |
| 1-3 | 50 | 2.3 | 24.5°(D) | 1024X768, 17μm | SOIR-0013 | Contact us | Please Consult | Request a Quote |
| 1-3 | 200 | 2.5 | 2.7°(H)×2.2°(V) | 640X512, 15μm | SOIR-0014 | Contact us | Please Consult | Request a Quote |
| 1.5-5 | 12 | 3 | 54°(D) | 1024X768, 17μm | SOIR-0015 | Contact us | Please Consult | Request a Quote |
| 1-3 | 23 | 2 | 30°(D) | 320X256, 30μm | SOIR-0016 | Contact us | Please Consult | Request a Quote |
| 0.9-2.5 | 25 | 2.5 | 26°(D) | 320X256, 30μm | SOIR-0017 | Contact us | Please Consult | Request a Quote |
| 1.5-5 | 25 | 3 | 50°(D) | 1024X768, 17μm | SOIR-0018 | Contact us | Please Consult | Request a Quote |
| 0.9-2.5 | 35 | 2 | 10°(D) | 320X256, 30μm | SOIR-0019 | Contact us | Please Consult | Request a Quote |
| 0.9-2.5 | 50 | 2 | 14°(D) | 320X256, 30μm | SOIR-0020 | Contact us | Please Consult | Request a Quote |
| 1.5-5 | 50 | 2.3 | 24.5°(D) | 1024X768, 17μm | SOIR-0021 | Contact us | Please Consult | Request a Quote |
| 0.9-2.5 | 75 | 2 | 9.4°(D) | 640X512, 15μm | SOIR-0022 | Contact us | Please Consult | Request a Quote |
| 1.5-5 | 100 | 2.3 | 12.5°(D) | 1024X768, 17μm | SOIR-0023 | Contact us | Please Consult | Request a Quote |
| 1-3 | 200 | 2.5 | 3.5°(D) | 640X512, 15μm | SOIR-0024 | Contact us | Please Consult | Request a Quote |

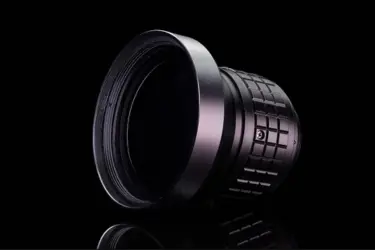

MWIR Lenses
| Wavelength (μm) | EFL (mm) | F# | FOV | Sensor | PN | Price (USD) | Delivery Time | Request a Quote |
|---|---|---|---|---|---|---|---|---|
| 3-5 | 15 | 1 | 44.5°(D) | 320X256, 30μm | SOIR-0025 | Contact us | Please Consult | Request a Quote |
| 3-5 | 15 | 3 | 15.5°(H)×15.5°(V) | 2750X2750, 15μm | SOIR-0026 | Contact us | Please Consult | Request a Quote |
| 3-5 | 25 | 2 | 27.6°(D) | 640X512, 15μm | SOIR-0027 | Contact us | Please Consult | Request a Quote |
| 3-5 | 35 | 3 | 104°(D) | 2750X2750, 15μm | SOIR-0028 | Contact us | Please Consult | Request a Quote |
| 3-5 | 50 | 2 | 10.9°(H)×8.7°(V) | 640X512, 15μm | SOIR-0029 | Contact us | Please Consult | Request a Quote |
| 3-5 | 50 | 3 | 21.7°(H)×17.4°(V) | 1280X1024, 15μm | SOIR-0030 | Contact us | Please Consult | Request a Quote |
| 3-5 | 50 | 3.75 | 27.6°(D) | 1280X1024, 15μm | SOIR-0031 | Contact us | Please Consult | Request a Quote |
| 3-5 | 50 | 4 | 14.5°(D) | 1024X768, 10μm | SOIR-0032 | Contact us | Please Consult | Request a Quote |
| 3-5 | 50 | 4 | 27.6°(D) | 1280X1024, 12μm | SOIR-0033 | Contact us | Please Consult | Request a Quote |
| 3-5 | 50 | 4 | 14°(D) | 640X512, 15μm | SOIR-0034 | Contact us | Please Consult | Request a Quote |
| 3-5 | 70 | 2 | 7.8°(H)×6.3°(V) | 640X512, 15μm | SOIR-0035 | Contact us | Please Consult | Request a Quote |
| 3-5 | 100 | 2 | 11.2°(D) | 640X512, 24μm | SOIR-0036 | Contact us | Please Consult | Request a Quote |
| 3-5 | 200 | 4 | 7°(D) | 1280X1024, 12μm | SOIR-0037 | Contact us | Please Consult | Request a Quote |
| 3-5 | 200 | 4 | 3.2°(D) | 2750X2750, 15μm | SOIR-0038 | Contact us | Please Consult | Request a Quote |
| 3-5 | 10 | 4.5 | 69.6°(D) | 640X512, 15μm | SOIR-0039 | Contact us | Please Consult | Request a Quote |
| 3-5 | 15 | 1 | 44.5°(D) | 640X512, 15μm | SOIR-0040 | Contact us | Please Consult | Request a Quote |
| 3-5 | 15 | 3 | 21.5°(D) | 2750X2750, 15μm | SOIR-0041 | Contact us | Please Consult | Request a Quote |
| 3-5 | 25 | 2 | 27.6°(D) | 640X512, 15μm | SOIR-0042 | Contact us | Please Consult | Request a Quote |
| 3-5 | 35 | 3 | 104°(D) | 2750X2750, 15μm | SOIR-0043 | Contact us | Please Consult | Request a Quote |
| 3-5 | 50 | 2 | 14°(D) | 640X512, 15μm | SOIR-0044 | Contact us | Please Consult | Request a Quote |
| 3-5 | 50 | 3 | 27.6°(D) | 1280X1024, 15μm | SOIR-0045 | Contact us | Please Consult | Request a Quote |
| 3-5 | 50 | 3.75 | 27.6°(D) | 1280X1024, 15μm | SOIR-0046 | Contact us | Please Consult | Request a Quote |
| 3-5 | 50 | 4 | 14.5°(D) | 1024X768, 10μm | SOIR-0047 | Contact us | Please Consult | Request a Quote |
| 3-5 | 50 | 4 | 27.6°(D) | 1280X1024, 15μm | SOIR-0048 | Contact us | Please Consult | Request a Quote |
| 3-5 | 50 | 4 | 14°(D) | 640X512, 15μm | SOIR-0049 | Contact us | Please Consult | Request a Quote |
| 3-5 | 70 | 2 | 10°(D) | 640X512, 15μm | SOIR-0050 | Contact us | Please Consult | Request a Quote |
| 3-5 | 100 | 2 | 11.2°(D) | 640X512, 24μm | SOIR-0051 | Contact us | Please Consult | Request a Quote |
| 3-5 | 200 | 4 | 7°(D) | 1280X1024, 12μm | SOIR-0052 | Contact us | Please Consult | Request a Quote |
| 3-5 | 200 | 4 | 3.2°(D) | 2750X2750, 15μm | SOIR-0053 | Contact us | Please Consult | Request a Quote |
Medium-Wave Infrared Electric Adjustable Lenses
| Wavelength (μm) | EFL (mm) | F# | FOV | Sensor | PN | Price (USD) | Delivery Time | Request a Quote |
|---|---|---|---|---|---|---|---|---|
| 3-5 | 200 | 2 | 2.7°(H)×2.2°(V) | 640X512, 15μm | SOIR-0054 | Contact us | Please Consult | Request a Quote |
| 3-5 | 30-300 | 4 | 18.1°(H)-1.8°(H) | 320X256, 15μm | SOIR-0055 | Contact us | Please Consult | Request a Quote |
| 3-5 | 30-300 | 4 | 18.1°(H)-1.8°(H) | 640X512, 15μm | SOIR-0056 | Contact us | Please Consult | Request a Quote |
| 3-5 | 200 | 2 | 2.7°×2.2° | 640X512, 15μm | SOIR-0057 | Contact us | Please Consult | Request a Quote |
| 3-5 | 30-300 | 4 | 18.1°(H)-1.8°(H) | 640X512, 15μm | SOIR-0058 | Contact us | Please Consult | Request a Quote |

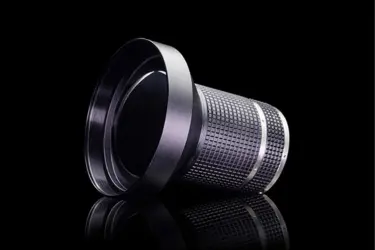

LWIR Lenses
| Wavelength (μm) | EFL (mm) | F# | FOV | Sensor | PN | Price (USD) | Delivery Time | Request a Quote |
|---|---|---|---|---|---|---|---|---|
| 8-12 | 4.4 | 1 | 180°(H)×136°(V) | 800X600, 17μm | SOIR-0059 | Contact us | Please Consult | Request a Quote |
| 8-12 | 4.6 | 1 | 94.5°(H)×103.3°(V) | 640X480, 17μm | SOIR-0060 | Contact us | Please Consult | Request a Quote |
| 8-12 | 5.5 | 1 | 73°(D) | 384X288, 17μm | SOIR-0061 | Contact us | Please Consult | Request a Quote |
| 8-12 | 5.6 | 1 | 140°(H)×110°(V) | 800X600, 17μm | SOIR-0062 | Contact us | Please Consult | Request a Quote |
| 8-12 | 7.2 | 1 | 110°(H)×80°(V) | 800X600, 17μm | SOIR-0063 | Contact us | Please Consult | Request a Quote |
Long-Wave Infrared Electrically Adjustable Lenses
| Wavelength (μm) | EFL (mm) | F# | FOV | Sensor | PN | Price (USD) | Delivery Time | Request a Quote |
|---|---|---|---|---|---|---|---|---|
| 8-12 | 21 | 1 | 15.6°(H)×11.9°(V) | 336X256, 17μm | SOIR-0064 | Contact us | Please Consult | Request a Quote |
| 8-12 | 25 | 1 | 30.4°(D) | 384X288, 17μm | SOIR-0065 | Contact us | Please Consult | Request a Quote |
| 8-12 | 30 | 1 | 20.5°(H)×15.5°(V) | 640X480, 17μm | SOIR-0066 | Contact us | Please Consult | Request a Quote |
| 8-12 | 30 | 1 | 26.2°(D) | 640X480, 17μm | SOIR-0067 | Contact us | Please Consult | Request a Quote |
| 8-12 | 40 | 1 | 18.6°(D) | 336X256, 17μm | SOIR-0068 | Contact us | Please Consult | Request a Quote |
| 8-12 | 40 | 1 | 18.6°(D) | 640X480, 17μm | SOIR-0069 | Contact us | Please Consult | Request a Quote |
| 8-12 | 50 | 1 | 12.4°(H)×9.3°(V) | 640X480, 17μm | SOIR-0070 | Contact us | Please Consult | Request a Quote |
| 8-12 | 75 | 1 | 8.2°(H)×6.2°(V) | 640X480, 17μm | SOIR-0071 | Contact us | Please Consult | Request a Quote |
| 8-12 | 75 | 1 | 5.9°(H)×4.7°(V) | 640X512, 12μm | SOIR-0072 | Contact us | Please Consult | Request a Quote |
| 8-12 | 100 | 1 | 8.8°(H)×7°(V) | 1280X1024, 17μm | SOIR-0073 | Contact us | Please Consult | Request a Quote |
Long-Wave Infrared Continuous Zoom Lenses
| Wavelength (μm) | EFL (mm) | F# | FOV | Sensor | PN | Price (USD) | Delivery Time | Request a Quote |
|---|---|---|---|---|---|---|---|---|
| 8-12 | 15-60 | 0.8-1.0 | 40°(H)-10.4°(H) | 640X512, 17μm | SOIR-0074 | Contact us | Please Consult | Request a Quote |
| 8-12 | 20-100 | 1.2 | 24.6°(H)-6.2°(H) | 640X512, 17μm | SOIR-0075 | Contact us | Please Consult | Request a Quote |
| 8-12 | 25-75 | 1.2 | 24.6°(H)-8.3°(H) | 640X512, 17μm / 12μm | SOIR-0076 | Contact us | Please Consult | Request a Quote |
| 8-12 | 30-150 | 0.85/1.2 | 20.5°(H)-4.1°(H) / 12.4°(H)-2.5°(H) | 384X288, 17μm | SOIR-0077 | Contact us | Please Consult | Request a Quote |
| 8-12 | 30-150 | 0.85/1.2 | 20.5°(H)-4.1°(H) / 12.4°(H)-2.5°(H) | 640X480, 17μm | SOIR-0078 | Contact us | Please Consult | Request a Quote |
| 8-12 | 30-150 | 0.85/1.2 | 20.5°(H)-4.1°(H) | 640X512, 17μm | SOIR-0079 | Contact us | Please Consult | Request a Quote |
| 8-12 | 25-225 | 1.5 | 24.5°(H)-2.7°(H) / 14.8°(H)-1.6°(H) | 384X288, 17μm | SOIR-0080 | Contact us | Please Consult | Request a Quote |
| 8-12 | 25-225 | 1.5 | 24.5°(H)-2.7°(H) / 14.8°(H)-1.6°(H) | 640X512, 17μm | SOIR-0081 | Contact us | Please Consult | Request a Quote |
| 8-12 | 13/45 | 0.8-1 | 33°(H) / 9.7°(H) | 640X512, 12μm | SOIR-0082 | Contact us | Please Consult | Request a Quote |
| 8-12 | 15/60 | 0.9-1 | 62°(H) / 14°(H) | 1024X768, 12μm | SOIR-0083 | Contact us | Please Consult | Request a Quote |
| 8-12 | 25-75 | 1.2 | 25°(H) / 8.3°(H) | 640X512, 17μm | SOIR-0084 | Contact us | Please Consult | Request a Quote |
| 8-12 | 20-100 | 1.2 | 30.2°(H) / 6.1°(H) | 640X512, 17μm | SOIR-0085 | Contact us | Please Consult | Request a Quote |
| 8-12 | 30/150 | 0.85/1.2 | 20.5°(H) / 4.1°(H) | 640X512, 17μm | SOIR-0086 | Contact us | Please Consult | Request a Quote |
| 8-12 | 25/225 | 1.5 | 24.5°(H) / 2.7°(H) | 640X512, 17μm | SOIR-0087 | Contact us | Please Consult | Request a Quote |
LWIR Lenses
| Wavelength (μm) | EFL (mm) | F# | FOV | Sensor | PN | Price (USD) | Delivery Time | Request a Quote |
|---|---|---|---|---|---|---|---|---|
| 8-12 | 4 | 2 | 104°(H)×91.4°(V) | 640X512, 16μm | SOIR-0088 | Contact us | Please Consult | Request a Quote |
| 8-12 | 7 | 1.1 | 80°(H)×60°(V)×102°(D) | 640X480, 17μm | SOIR-0089 | Contact us | Please Consult | Request a Quote |
| 8-12 | 7 | 2 | 72.4°(H)×60.7°(V) | 640X512, 16μm | SOIR-0090 | Contact us | Please Consult | Request a Quote |
| 8-12 | 7.4 | 1.1 | 53°(H)×39°(V)×68°(D) | 384X288, 17μm | SOIR-0091 | Contact us | Please Consult | Request a Quote |
| 8-12 | 7.5 | 1 | 84.4°(D) | 320X240, 25μm | SOIR-0092 | Contact us | Please Consult | Request a Quote |
| 8-12 | 7.5 | 1 | 84.4°(D) | 640X480, 17μm | SOIR-0093 | Contact us | Please Consult | Request a Quote |
| 8-12 | 10 | 1 | 36.2°(H)×27.5°(V)×44.4°(D) | 384X288, 17μm | SOIR-0094 | Contact us | Please Consult | Request a Quote |
| 8-12 | 13 | 1.2 | 33.6°(H)×27°(V)×43.4°(D) | 640X512, 12μm | SOIR-0095 | Contact us | Please Consult | Request a Quote |
| 8-12 | 15 | 1 | 48.8°(D) | 320X240, 25μm | SOIR-0096 | Contact us | Please Consult | Request a Quote |
| 8-12 | 15 | 1 | 24.5°(H)×18.4°(V)×30.6°(D) | 384X288, 12μm | SOIR-0097 | Contact us | Please Consult | Request a Quote |
| 8-12 | 15 | 1 | 17.3°(H)×13°(V)×21.6°(D) | 384X288, 12μm | SOIR-0098 | Contact us | Please Consult | Request a Quote |
| 8-12 | 15 | 1 | 48.8°(D) | 640X480, 17μm | SOIR-0099 | Contact us | Please Consult | Request a Quote |
| 8-12 | 15 | 2 | 37.7°(H)×30.6°(V) | 640X512, 16μm | SOIR-0100 | Contact us | Please Consult | Request a Quote |
| 8-12 | 19 | 1 | 39°(D) | 320X240, 25μm | SOIR-0101 | Contact us | Please Consult | Request a Quote |
| 8-12 | 19 | 1 | 12.2°(H)×10.4°(V)×17.2°(D) | 384X288, 12μm | SOIR-0102 | Contact us | Please Consult | Request a Quote |
| 8-12 | 19 | 1.1 | 39°(D) | 384X288, 17μm | SOIR-0103 | Contact us | Please Consult | Request a Quote |
| 8-12 | 19 | 1 | 22.8°(H)×17.2°(V)×28.9°(D) | 640X480, 12μm | SOIR-0104 | Contact us | Please Consult | Request a Quote |
| 8-12 | 19 | 1 | 39°(D) | 640X480, 17μm | SOIR-0105 | Contact us | Please Consult | Request a Quote |
| 8-12 | 19 | 1.1 | 39°(D) | 640X480, 17μm | SOIR-0106 | Contact us | Please Consult | Request a Quote |
| 8-12 | 19 | 1.1 | 32°(H)×24°(V)×39.4°(D) | 640X480, 17μm | SOIR-0107 | Contact us | Please Consult | Request a Quote |
| 8-12 | 20 | 2 | 27°(H)×20.4°(V)×35.2°(D) | 384X288, 25μm | SOIR-0108 | Contact us | Please Consult | Request a Quote |
| 8-12 | 22.6 | 1 | 16.4°(H)×12.4°(V) | 384X288, 17μm | SOIR-0109 | Contact us | Please Consult | Request a Quote |
| 8-12 | 25 | 1 | 69.7°(H)×55.1°(V)×82°(D) | 2048X1536, 17μm | SOIR-0110 | Contact us | Please Consult | Request a Quote |
| 8-12 | 25 | 1 | 9.2°(H)×7.8°(V)×13°(D) | 384X288, 12μm | SOIR-0111 | Contact us | Please Consult | Request a Quote |
| 8-12 | 25 | 1.1 | 30.4°(D) | 384X288, 17μm | SOIR-0112 | Contact us | Please Consult | Request a Quote |
| 8-12 | 25 | 1 | 30.4°(D) | 384X288, 17μm | SOIR-0113 | Contact us | Please Consult | Request a Quote |
| 8-12 | 25 | 1 | 30°(D) | 384X288, 17μm | SOIR-0114 | Contact us | Please Consult | Request a Quote |
| 8-12 | 25 | 1.1 | 10.9°(H)×8.2°(V)×13.6°(D) | 400X300, 12μm | SOIR-0115 | Contact us | Please Consult | Request a Quote |
| 8-12 | 25 | 1.1 | 15.4°(H)×11.6°(V)×19.2°(D) | 400X300, 17μm | SOIR-0116 | Contact us | Please Consult | Request a Quote |
| 8-12 | 25 | 1 | 17.4°(H)×13°(V)×21.6°(D) | 640X480, 12μm | SOIR-0117 | Contact us | Please Consult | Request a Quote |
| 8-12 | 25 | 1.1 | 30.4°(D) | 640X480, 17μm | SOIR-0118 | Contact us | Please Consult | Request a Quote |
| 8-12 | 25 | 1.1 | 24.5°(H)×18.5°(V)×30.4°(D) | 640X480, 17μm | SOIR-0119 | Contact us | Please Consult | Request a Quote |
| 8-12 | 25 | 1 | 30.4°(D) | 640X480, 17μm | SOIR-0120 | Contact us | Please Consult | Request a Quote |
| 8-12 | 25 | 1 | 30°(D) | 640X480, 17μm | SOIR-0121 | Contact us | Please Consult | Request a Quote |
| 8-12 | 25 | 1.1 | 15.4°(H)×11.6°(V)×19.2°(D) | 640X512, 12μm | SOIR-0122 | Contact us | Please Consult | Request a Quote |
| 8-12 | 25 | 1.1 | 15.4°(H)×11.6°(V)×19.2°(D) | 640X512, 12μm | SOIR-0123 | Contact us | Please Consult | Request a Quote |
| 8-12 | 25 | 1.1 | 10.9°(H)×8.2°(V)×13.6°(D) | 640X512, 12μm | SOIR-0124 | Contact us | Please Consult | Request a Quote |
| 8-12 | 30 | 1 | 25.5°(D) | 320X240, 25μm | SOIR-0125 | Contact us | Please Consult | Request a Quote |
| 8-12 | 30 | 2 | 18°(H)×14°(V)×23°(D) | 320X256, 30μm | SOIR-0126 | Contact us | Please Consult | Request a Quote |
| 8-12 | 30 | 1 | 20.5°(H)×15.5°(V)×25.5°(D) | 640X480, 17μm | SOIR-0127 | Contact us | Please Consult | Request a Quote |
| 8-12 | 35 | 1 | 7.5°(H)×5.6°(V)×9.4°(D) | 384X288, 12μm | SOIR-0128 | Contact us | Please Consult | Request a Quote |
| 8-12 | 35 | 1.2 | 6.6°(H)×5.6°(V)×9.4°(D) | 384X288, 12μm | SOIR-0129 | Contact us | Please Consult | Request a Quote |
| 8-12 | 35 | 1.1 | 10.6°(H)×8°(V)×13.2°(D) | 384X288, 17μm | SOIR-0130 | Contact us | Please Consult | Request a Quote |
| 8-12 | 35 | 1.1 | 10.7°(H)×8°(V)×13.3°(D) | 384X288, 17μm | SOIR-0131 | Contact us | Please Consult | Request a Quote |
| 8-12 | 35 | 1 | 12.5°(H)×10°(V)×16°(D) | 384X288, 17μm | SOIR-0132 | Contact us | Please Consult | Request a Quote |
| 8-12 | 35 | 1.2 | 12.4°(H)×9.4°(V)×15.4°(D) | 640X480, 12μm | SOIR-0133 | Contact us | Please Consult | Request a Quote |
| 8-12 | 35 | 1 | 17.7°(H)×13.3°(V)×22°(D) | 640X480, 17μm | SOIR-0134 | Contact us | Please Consult | Request a Quote |
| 8-12 | 35 | 1 | 17.7°(H)×13.3°(V) | 640X480, 17μm | SOIR-0135 | Contact us | Please Consult | Request a Quote |
| 8-12 | 35 | 1 | 12.5°(H)×10°(V)×16°(D) | 640X512, 12μm | SOIR-0136 | Contact us | Please Consult | Request a Quote |
| 8-12 | 35 | 1 | 12.5°(H)×10°(V) | 640X512, 12μm | SOIR-0137 | Contact us | Please Consult | Request a Quote |
| 8-12 | 35 | 1 | 17.5°(H)×13.2°(V)×21.6°(D) | 640X512, 17μm | SOIR-0138 | Contact us | Please Consult | Request a Quote |
| 8-12 | 38 | 1.3 | 16°(H)×12°(V)×20°(D) | 384X288, 17μm | SOIR-0139 | Contact us | Please Consult | Request a Quote |
| 8-12 | 38 | 1.3 | 16°(H)×12°(V)×20°(D) | 640X480, 17μm | SOIR-0140 | Contact us | Please Consult | Request a Quote |
| 8-12 | 41 | 1 | 15.5°(H)×11.6°(V) | 640X480, 17μm | SOIR-0141 | Contact us | Please Consult | Request a Quote |
| 8-12 | 42 | 1.2 | 14.7°(H)×11.1°(V) | 640X480, 17μm | SOIR-0142 | Contact us | Please Consult | Request a Quote |
| 8-12 | 50 | 0.8 | 19.7°(H)×14.8°(V)×24.5°(D) | 1024X768, 17μm | SOIR-0143 | Contact us | Please Consult | Request a Quote |
| 8-12 | 50 | 1 | 15°(D) | 320X240, 25μm | SOIR-0144 | Contact us | Please Consult | Request a Quote |
| 8-12 | 50 | 1.1 | 7.4°(H)×5.6°(V)×9.3°(D) | 384X288, 17μm | SOIR-0145 | Contact us | Please Consult | Request a Quote |
| 8-12 | 50 | 1.1 | 7.5°(H)×5.6°(V)×9.3°(D) | 384X288, 17μm | SOIR-0146 | Contact us | Please Consult | Request a Quote |
| 8-12 | 50 | 1 | 8.8°(H)×7°(V)×11.2°(D) | 384X288, 17μm | SOIR-0147 | Contact us | Please Consult | Request a Quote |
| 8-12 | 50 | 1 | 12.4°(H)×9.3°(V)×15.5°(D) | 640X480, 17μm | SOIR-0148 | Contact us | Please Consult | Request a Quote |
| 8-12 | 50 | 1.2 | 12.4°(H)×9.3°(V)×15.5°(D) | 640X480, 17μm | SOIR-0149 | Contact us | Please Consult | Request a Quote |
| 8-12 | 50 | 1 | 15.5°(D) | 640X480, 17μm | SOIR-0150 | Contact us | Please Consult | Request a Quote |
| 8-12 | 50 | 1.2 | 15.5°(D) | 640X480, 17μm | SOIR-0151 | Contact us | Please Consult | Request a Quote |
| 8-12 | 50 | 1 | 15°(D) | 640X480, 17μm | SOIR-0152 | Contact us | Please Consult | Request a Quote |
| 8-12 | 50 | 1.1 | 7.4°(H)×5.6°(V)×9.3°(D) | 640X480, 17μm | SOIR-0153 | Contact us | Please Consult | Request a Quote |
| 8-12 | 50 | 1 | 8.8°(H)×7°(V)×11.3°(D) | 640X512, 12μm | SOIR-0154 | Contact us | Please Consult | Request a Quote |
| 8-12 | 50 | 1.1 | 8.8°(H)×7°(V)×11°(D) | 640X512, 12μm | SOIR-0155 | Contact us | Please Consult | Request a Quote |
| 8-12 | 50 | 4 | 10.9°(H)×8.7°(V)×14°(D) | 640X512, 15μm | SOIR-0156 | Contact us | Please Consult | Request a Quote |
| 8-12 | 70 | 1.3 | 6.2°(H)×5°(V)×8°(D) | 640X512, 12μm | SOIR-0157 | Contact us | Please Consult | Request a Quote |
| 8-12 | 75 | 1 | 5°(H)×3.7°(V)×6.2°(D) | 384X288, 17μm | SOIR-0158 | Contact us | Please Consult | Request a Quote |
| 8-12 | 75 | 1 | 8.3°(H)×6.2°(V)×10.3°(D) | 640X480, 17μm | SOIR-0159 | Contact us | Please Consult | Request a Quote |
| 8-12 | 100 | 1.3 | 7.8°(D) | 640X480, 17μm | SOIR-0160 | Contact us | Please Consult | Request a Quote |
| 8-12 | 100 | 1.3 | 6.2°(H)×4.6°(V)×7.8°(D) | 640X480, 17μm | SOIR-0161 | Contact us | Please Consult | Request a Quote |
| 8-12 | 120 | 2 | 4.9°(H)×3.9°(V) | 640X512, 16μm | SOIR-0162 | Contact us | Please Consult | Request a Quote |
| 8-12 | 150 | 1.2 | 4.15°(H)×3.32°(V)×5.32°(D) | 640X512, 17μm | SOIR-0163 | Contact us | Please Consult | Request a Quote |
| 8-12 | 200 | 4 | 2.7°(H)×2.1°(V)×3.2°(D) | 640X512, 15μm | SOIR-0164 | Contact us | Please Consult | Request a Quote |
| 8-12 | 280 | 2 | 1.96°(H)×1.57°(V) | 320X256, 30μm | SOIR-0165 | Contact us | Please Consult | Request a Quote |
Long-Wave Infrared Athermalized Lenses
| Wavelength (μm) | EFL (mm) | F# | FOV | Sensor | PN | Price (USD) | Delivery Time | Request a Quote |
|---|---|---|---|---|---|---|---|---|
| 8-12 | 2.03 | 1 | 90.6°(H)×65.4°(V) | 256X192, 12μm | SOIR-0166 | Contact us | Please Consult | Request a Quote |
| 8-12 | 2.1 | 1 | 90.6°(H)×65.4°(V) | 256X192, 12μm | SOIR-0167 | Contact us | Please Consult | Request a Quote |
| 8-12 | 3.85 | 1 | 38.9°(H)×29.6°(V) | 160X120, 17μm | SOIR-0168 | Contact us | Please Consult | Request a Quote |
| 8-12 | 4.1 | 1.2 | 90.5°(H)×67.7°(V) | 384X288, 17μm | SOIR-0169 | Contact us | Please Consult | Request a Quote |
| 8-12 | 4.1 | 1.2 | 100°(H)×82°(V) | 640X512, 12μm | SOIR-0170 | Contact us | Please Consult | Request a Quote |
| 8-12 | 5 | 1.2 | 30.4°(H)×23°(V) | 160X120, 17μm | SOIR-0171 | Contact us | Please Consult | Request a Quote |
| 8-12 | 5.2 | 1 | 33.6°(H)×25.2°(V) | 256X192, 12μm | SOIR-0172 | Contact us | Please Consult | Request a Quote |
| 8-12 | 5.8 | 1.2 | 80°(H)×62°(V) | 640X512, 12μm | SOIR-0173 | Contact us | Please Consult | Request a Quote |
| 8-12 | 6 | 1.1 | 29.8°(H)×22.3°(V)×38°(D) | 256X192, 12μm | SOIR-0174 | Contact us | Please Consult | Request a Quote |
| 8-12 | 6.8 | 1.1 | 80°(H)×60°(V) | 640X480, 17μm | SOIR-0175 | Contact us | Please Consult | Request a Quote |
| 8-12 | 6.9 | 1 | 90°(H)×70°(V) | 640X512, 17μm | SOIR-0176 | Contact us | Please Consult | Request a Quote |
| 8-12 | 7.1 | 1 | 62.5°(H)×49.6°(V) | 640X512, 12μm | SOIR-0177 | Contact us | Please Consult | Request a Quote |
| 8-12 | 7.5 | 1 | 47.04°(H)×36.15°(V)×57.09°(D) | 384X288, 17μm | SOIR-0178 | Contact us | Please Consult | Request a Quote |
| 8-12 | 7 | 1 | 25.2°(H)×18.8°(V) | 256X192, 12μm | SOIR-0179 | Contact us | Please Consult | Request a Quote |
| 8-12 | 7 | 1.1 | 25.2°(H)×18.8°(V) | 256X192, 12μm | SOIR-0180 | Contact us | Please Consult | Request a Quote |
| 8-12 | 7 | 1.1 | 80°(H)×60°(V) | 640X480, 17μm | SOIR-0181 | Contact us | Please Consult | Request a Quote |
| 8-12 | 8.5 | 1.2 | 65.2°(H)×51.2°(V) | 640X480, 17μm | SOIR-0182 | Contact us | Please Consult | Request a Quote |
| 8-12 | 8.7 | 1 | 50.8°(H)×40.6°(V) | 640X512, 12μm | SOIR-0183 | Contact us | Please Consult | Request a Quote |
| 8-12 | 8.8 | 1 | 63.4°(H)×49.7°(V) | 640X480, 17μm | SOIR-0184 | Contact us | Please Consult | Request a Quote |
| 8-12 | 9.1 | 1.2 | 48°(H)×38°(V) | 640X512, 12μm | SOIR-0185 | Contact us | Please Consult | Request a Quote |
| 8-12 | 9.5 | 1 | 29°(H)×21.5°(V) | 400X300, 12μm | SOIR-0186 | Contact us | Please Consult | Request a Quote |
| 8-12 | 9 | 1 | 28.8°(H)×21.8°(V) | 384X288, 12μm | SOIR-0187 | Contact us | Please Consult | Request a Quote |
| 8-12 | 9 | 1 | 40°(H)×30.5°(V) | 384X288, 17μm | SOIR-0188 | Contact us | Please Consult | Request a Quote |
| 8-12 | 9 | 1 | 50.8°(H)×40°(V) | 640X512, 12μm | SOIR-0189 | Contact us | Please Consult | Request a Quote |
| 8-12 | 9 | 1 | 63.3°(H)×52°(V) | 640X512, 17μm | SOIR-0190 | Contact us | Please Consult | Request a Quote |
| 8-12 | 12.8 | 1 | 28°(H)×21°(V) | 384X288, 17μm | SOIR-0191 | Contact us | Please Consult | Request a Quote |
| 8-12 | 10 | 1 | 23°(H)×17.3°(V) | 240X180, 17μm | SOIR-0192 | Contact us | Please Consult | Request a Quote |
| 8-12 | 10 | 1 | 17.5°(H)×13°(V) | 256X192, 12μm | SOIR-0193 | Contact us | Please Consult | Request a Quote |
| 8-12 | 10 | 1 | 17.8°(H)×13.3°(V) | 256X192, 12μm | SOIR-0194 | Contact us | Please Consult | Request a Quote |
| 8-12 | 10 | 1 | 36.8°(H)×27.8°(V) | 384X288, 17μm | SOIR-0195 | Contact us | Please Consult | Request a Quote |
| 8-12 | 10 | 1 | 36°(H)×27°(V) | 384X288, 17μm | SOIR-0196 | Contact us | Please Consult | Request a Quote |
| 8-12 | 10 | 1 | 66.2°(D) | 640X512, 17μm | SOIR-0197 | Contact us | Please Consult | Request a Quote |
| 8-12 | 10.3 | 1 | 60°(H)×47.7°(V) | 640X512, 17μm | SOIR-0198 | Contact us | Please Consult | Request a Quote |
| 8-12 | 10.4 | 1.2 | 25.4°(H)×19°(V) | 384X288, 12μm | SOIR-0199 | Contact us | Please Consult | Request a Quote |
| 8-12 | 11 | 1 | 63.4°(D) | 384X288, 25μm | SOIR-0200 | Contact us | Please Consult | Request a Quote |
| 8-12 | 11 | 1 | 63.4°(D) | 640X480, 17μm | SOIR-0201 | Contact us | Please Consult | Request a Quote |
| 8-12 | 12.3 | 1 | 42°(H)×32°(V) | 384X288, 25μm | SOIR-0202 | Contact us | Please Consult | Request a Quote |
| 8-12 | 12.3 | 1 | 34.6°(H)×26.3°(V) | 640X480, 12μm | SOIR-0203 | Contact us | Please Consult | Request a Quote |
| 8-12 | 12.6 | 1.1 | 46°(H)×35°(V) | 640X480, 17μm | SOIR-0204 | Contact us | Please Consult | Request a Quote |
| 8-12 | 12.8 | 1 | 28°(H)×21°(V) | 384X288, 17μm | SOIR-0205 | Contact us | Please Consult | Request a Quote |
| 8-12 | 13.5 | 1 | 31.7°(H)×25.6°(V) | 640X512, 12μm | SOIR-0206 | Contact us | Please Consult | Request a Quote |
| 8-12 | 13 | 1 | 28.1°(H)×21.3°(V) | 384X288, 17μm | SOIR-0207 | Contact us | Please Consult | Request a Quote |
| 8-12 | 13 | 1 | 28.6°(H)×21.5°(V) | 384X288, 17μm | SOIR-0208 | Contact us | Please Consult | Request a Quote |
| 8-12 | 13 | 1 | 33.4°(H)×26.8°(V) | 640X512, 12μm | SOIR-0209 | Contact us | Please Consult | Request a Quote |
| 8-12 | 13 | 1.2 | 33.6°(H)×27°(V) | 640X512, 12μm | SOIR-0210 | Contact us | Please Consult | Request a Quote |
| 8-12 | 13 | 1 | 35.2°(H)×27.2°(V) | 640X512, 12μm | SOIR-0211 | Contact us | Please Consult | Request a Quote |
| 8-12 | 13 | 1 | 45°(H)×37°(V) | 640X512, 17μm | SOIR-0212 | Contact us | Please Consult | Request a Quote |
| 8-12 | 14.5 | 1 | 25.3°(H)×19.3°(V) | 384X288, 17μm | SOIR-0213 | Contact us | Please Consult | Request a Quote |
| 8-12 | 15 | 1 | 24.55°(H)×18.54°(V) | 384X288, 17μm | SOIR-0214 | Contact us | Please Consult | Request a Quote |
| 8-12 | 15 | 1 | 40°(H)×32°(V) | 640X512, 17μm | SOIR-0215 | Contact us | Please Consult | Request a Quote |
| 8-12 | 15 | 1 | 41.5°(H)×31°(V) | 640X512, 17μm | SOIR-0216 | Contact us | Please Consult | Request a Quote |
| 8-12 | 16.8 | 1 | 26°(H)×19.6°(V) | 640X512, 12μm | SOIR-0217 | Contact us | Please Consult | Request a Quote |
| 8-12 | 17.8 | 1 | 35°(H)×27.6°(V) | 640X512, 17μm | SOIR-0218 | Contact us | Please Consult | Request a Quote |
| 8-12 | 18 | 1 | 14.6°(H)×11°(V) | 256X192, 12μm | SOIR-0219 | Contact us | Please Consult | Request a Quote |
| 8-12 | 18 | 1 | 24°(H)×19.4°(V) | 640X512, 12μm | SOIR-0220 | Contact us | Please Consult | Request a Quote |
| 8-12 | 19 | 1 | 17.2°(H)×13.1°(V) | 336X256, 17μm | SOIR-0221 | Contact us | Please Consult | Request a Quote |
| 8-12 | 19 | 1 | 19.5°(H)×14.5°(V) | 384X288, 17μm | SOIR-0222 | Contact us | Please Consult | Request a Quote |
| 8-12 | 19 | 1 | 31.9°(H)×24.2°(V) | 640X480, 17μm | SOIR-0223 | Contact us | Please Consult | Request a Quote |
| 8-12 | 19 | 1 | 32°(H)×24°(V) | 640X480, 17μm | SOIR-0224 | Contact us | Please Consult | Request a Quote |
| 8-12 | 19 | 1 | 22.8°(H)×18.3°(V) | 640X512, 12μm | SOIR-0225 | Contact us | Please Consult | Request a Quote |
| 8-12 | 19 | 1 | 23°(H)×18.4°(V) | 640X512, 12μm | SOIR-0226 | Contact us | Please Consult | Request a Quote |
| 8-12 | 19 | 1 | 32°(H)×25.8°(V) | 640X512, 17μm | SOIR-0227 | Contact us | Please Consult | Request a Quote |
| 8-12 | 19 | 1 | 33°(H)×26°(V) | 640X512, 17μm | SOIR-0228 | Contact us | Please Consult | Request a Quote |
| 8-12 | 20 | 1 | 31°(H)×24.6°(V) | 640X512, 17μm | SOIR-0229 | Contact us | Please Consult | Request a Quote |
| 8-12 | 23.5 | 1.16 | 7.4°(H)×5.6°(V) | 256X192, 12μm | SOIR-0230 | Contact us | Please Consult | Request a Quote |
| 8-12 | 24 | 1 | 18°(H)×14.5°(V) | 640X512, 12μm | SOIR-0231 | Contact us | Please Consult | Request a Quote |
| 8-12 | 25 | 1 | 34.1°(H)×27.6°(V) | 1280X1024, 12μm | SOIR-0232 | Contact us | Please Consult | Request a Quote |
| 8-12 | 25 | 1 | 35.4°(H)×19.8°(V) | 1920X1028, 8μm | SOIR-0233 | Contact us | Please Consult | Request a Quote |
| 8-12 | 25 | 1 | 14.8°(H)×11.1°(V) | 384X288, 17μm | SOIR-0234 | Contact us | Please Consult | Request a Quote |
| 8-12 | 25 | 1 | 15°(H)×12°(V) | 384X288, 17μm | SOIR-0235 | Contact us | Please Consult | Request a Quote |
| 8-12 | 25 | 1 | 24.5°(H)×18.5°(V) | 640X480, 17μm | SOIR-0236 | Contact us | Please Consult | Request a Quote |
| 8-12 | 25 | 1 | 25°(H)×19°(V) | 640X480, 17μm | SOIR-0237 | Contact us | Please Consult | Request a Quote |
| 8-12 | 25 | 1 | 17.5°(H)×14°(V) | 640X512, 12μm | SOIR-0238 | Contact us | Please Consult | Request a Quote |
| 8-12 | 25 | 1 | 24.5°(H)×19.7°(V) | 640X512, 17μm | SOIR-0239 | Contact us | Please Consult | Request a Quote |
| 8-12 | 35 | 1 | 24.7°(H)×20°(V) | 1280X1024, 12μm | SOIR-0240 | Contact us | Please Consult | Request a Quote |
| 8-12 | 35 | 1.2 | 7.4°(H)×5.6°(V) | 384X288, 12μm | SOIR-0241 | Contact us | Please Consult | Request a Quote |
| 8-12 | 35 | 1.1 | 7.5°(H)×5.6°(V) | 384X288, 12μm | SOIR-0242 | Contact us | Please Consult | Request a Quote |
| 8-12 | 35 | 1 | 17.7°(H)×13.3°(V) | 640X480, 17μm | SOIR-0243 | Contact us | Please Consult | Request a Quote |
| 8-12 | 35 | 1 | 12.5°(H)×10°(V) | 640X512, 12μm | SOIR-0244 | Contact us | Please Consult | Request a Quote |
| 8-12 | 35 | 0.9 | 12.5°(H)×10°(V) | 640X512, 12μm | SOIR-0245 | Contact us | Please Consult | Request a Quote |
| 8-12 | 35 | 1.2 | 12°(H)×9°(V) | 640X512, 12μm | SOIR-0246 | Contact us | Please Consult | Request a Quote |
| 8-12 | 35 | 1 | 12.5°(H)×10°(V) | 640X512, 17μm | SOIR-0247 | Contact us | Please Consult | Request a Quote |
| 8-12 | 35 | 1/1.2 | 17.7°(H)×14.1°(V) | 640X512, 17μm | SOIR-0248 | Contact us | Please Consult | Request a Quote |
| 8-12 | 35 | 1 | 22°(H)×16°(V) | 800X600, 17μm | SOIR-0249 | Contact us | Please Consult | Request a Quote |
| 8-12 | 38.5 | 1 | 18.2°(H)×13.68°(V) | 1024X768, 12μm | SOIR-0250 | Contact us | Please Consult | Request a Quote |
| 8-12 | 40 | 1 | 15.5°(H)×12.4°(V) | 640X512, 17μm | SOIR-0251 | Contact us | Please Consult | Request a Quote |
| 8-12 | 48.2 | 1 | 18°(H)×14.5°(V) | 1280X1024, 12μm | SOIR-0252 | Contact us | Please Consult | Request a Quote |
| 8-12 | 50 | 1 | 17.5°(H)×14°(V) | 1280X1024, 12μm | SOIR-0253 | Contact us | Please Consult | Request a Quote |
| 8-12 | 50 | 1 | 12.4°(H)×9.3°(V) | 384X288, 17μm | SOIR-0254 | Contact us | Please Consult | Request a Quote |
| 8-12 | 50 | 1 | 12.4°(H)×9.3°(V) | 640X480, 17μm | SOIR-0255 | Contact us | Please Consult | Request a Quote |
| 8-12 | 50 | 1 | 8.4°(H)×6.7°(V) | 640X512, 12μm | SOIR-0256 | Contact us | Please Consult | Request a Quote |
| 8-12 | 50 | 1 | 8.8°(H)×7°(V) | 640X512, 12μm | SOIR-0257 | Contact us | Please Consult | Request a Quote |
| 8-12 | 50 | 1.2 | 8.8°(H)×7°(V) | 640X512, 12μm | SOIR-0258 | Contact us | Please Consult | Request a Quote |
| 8-12 | 50 | 1.2 | 12.4°(H)×9.9°(V) | 640X512, 17μm | SOIR-0259 | Contact us | Please Consult | Request a Quote |
| 8-12 | 52 | 1.2 | 12°(H)×9.6°(V) | 640X512, 17μm | SOIR-0260 | Contact us | Please Consult | Request a Quote |
| 8-12 | 60 | 1 | 10.3°(H)×8.2°(V) | 640X512, 17μm | SOIR-0261 | Contact us | Please Consult | Request a Quote |
| 8-12 | 60 | 1.25 | 77°(D) | 640X480, 17μm | SOIR-0262 | Contact us | Please Consult | Request a Quote |
| 8-12 | 75 | 1 | 8°(H)×6°(V) | 640X480, 17μm | SOIR-0263 | Contact us | Please Consult | Request a Quote |
| 8-12 | 75 | 1 | 5.9°(H)×4.7°(V) | 640X512, 12μm | SOIR-0264 | Contact us | Please Consult | Request a Quote |
| 8-12 | 75 | 1 | 5.8°(H)×4.7°(V) | 640X512, 17μm | SOIR-0265 | Contact us | Please Consult | Request a Quote |
| 8-12 | 75 | 1.2 | 5.8°(H)×4.7°(V) | 640X512, 17μm | SOIR-0266 | Contact us | Please Consult | Request a Quote |
| 8-12 | 75 | 1 | 71.9°(H)×4.7°(V) | 640X512, 17μm | SOIR-0267 | Contact us | Please Consult | Request a Quote |
| 8-12 | 75 | 1.2 | 8.2°(H)×6.6°(V) | 640X512, 17μm | SOIR-0268 | Contact us | Please Consult | Request a Quote |
| 8-12 | 88.5 | 1.2 | 7°(H)×5.6°(V) | 640X512, 17μm | SOIR-0269 | Contact us | Please Consult | Request a Quote |
| 8-12 | 100 | 1.2 | 4.4°(H)×3.5°(V) | 640X512, 17μm | SOIR-0270 | Contact us | Please Consult | Request a Quote |
| 8-12 | 100 | 1 | 6.2°(H)×4.7°(V) | 640X480, 17μm | SOIR-0271 | Contact us | Please Consult | Request a Quote |
| 8-12 | 100 | 1.2 | 6.2°(H)×4.7°(V) | 640X480, 17μm | SOIR-0272 | Contact us | Please Consult | Request a Quote |
| 8-12 | 100 | 1 | 8.8°(H)×7°(V) | 1280X1024, 12μm | SOIR-0273 | Contact us | Please Consult | Request a Quote |
| 8-12 | 110 | 1.3 | 5.6°(H)×4.5°(V) | 640X512, 17μm | SOIR-0274 | Contact us | Please Consult | Request a Quote |
High Precision Manufacturing for Custom IR Lenses
Shanghai Optics designs and manufactures custom infrared (IR) lenses for NIR, SWIR, MWIR, and LWIR applications, supporting customers across industrial, medical, aerospace, defense, and scientific markets. Our engineering team develops optical solutions ranging from standard objective lenses to complex opto-mechanical assemblies, optimizing each design for imaging performance, manufacturability, and long-term reliability.
With more than 60 years of optical manufacturing experience, we provide end-to-end engineering support—from optical design and prototype development to precision manufacturing, optical coating, assembly, and OEM production. Every IR lens is manufactured using ISO 9001-certified processes to ensure consistent quality and system-level performance.
Optical Testing & Quality Assurance
Reliable infrared imaging begins with rigorous optical verification. Every IR lens is inspected and validated according to customer specifications using advanced metrology equipment throughout the manufacturing process.
Our in-house testing capabilities include:
- Modulation Transfer Function (MTF) to evaluate imaging performance and resolution.
- Effective Focal Length (EFL) and Field of View (FOV) verification for system integration.
- Transmission and reflectivity measurements to maximize optical efficiency across infrared wavelengths.
- Distortion, field curvature, and astigmatism analysis to ensure accurate imaging performance.
Using our ImageMaster® Universal MTF Testing System, Shanghai Optics evaluates optical performance across the UV, Visible, NIR, SWIR, MWIR, and LWIR spectral ranges, ensuring every lens meets demanding application requirements before shipment.
Engineering Design & Customization
Many infrared imaging systems require optical performance beyond standard catalog products. Shanghai Optics develops custom IR lenses tailored to specific wavelength ranges, sensor formats, environmental conditions, and mechanical interfaces.
Our engineering team supports projects involving fixed focal length lenses, zoom lenses, dual-band VIS-SWIR optical systems, and complete opto-mechanical assemblies. From material selection and optical optimization to Design for Manufacturability (DFM), every solution is engineered to balance imaging performance with manufacturing efficiency.
For dual-band applications, we develop custom Visible-SWIR lenses delivering over 80% transmission while maintaining excellent image quality throughout the 700–1900 nm spectral range.
Need a customized infrared optical solution? Our engineers work closely with customers from concept development through prototype validation and OEM production to ensure every design meets its performance objectives.
Need more than a standard optical solution?
Shanghai Optics works closely with customers to optimize optical performance, manufacturing feasibility, and system integration. From concept development through prototype validation and production, our engineering team provides practical support throughout the entire product lifecycle.
Engineering & Manufacturing Capabilities
Shanghai Optics provides comprehensive engineering and manufacturing capabilities for infrared optical systems. Rather than offering one-size-fits-all products, we tailor every solution to each application’s optical, mechanical, and manufacturing requirements.
Infrared Optical Solutions
Our product portfolio includes objective lenses, fixed focal length lenses, zoom lenses, beam expanders, aspherical optics, dual-band VIS-SWIR optical systems, and complete opto-mechanical assemblies. Every design is optimized for the required wavelength range, imaging performance, and system integration.
Infrared Optical Materials
We manufacture infrared optics using industry-proven materials including Germanium (Ge), Zinc Selenide (ZnSe), Zinc Sulfide (ZnS), Chalcogenide Glass, Silicon, Sapphire, Calcium Fluoride (CaF₂), and other specialty infrared materials. Material selection is optimized according to wavelength range, environmental conditions, and system performance requirements.
Manufacturing & Optical Coating
Our vertically integrated manufacturing combines precision optical fabrication, advanced optical coating, precision assembly, and comprehensive quality inspection. Custom anti-reflection coatings are available for Visible, NIR, SWIR, MWIR, and LWIR applications to maximize optical transmission and overall system performance.
Engineering Support
From concept through production, our engineering team provides practical support including optical system design, mechanical integration, material selection, tolerance analysis, prototype optimization, and OEM manufacturing. We work closely with customers to simplify development while ensuring manufacturable, high-performance optical solutions.
Typical Applications
Shanghai Optics’ infrared lenses support a wide range of demanding imaging applications where optical performance and long-term reliability are critical.
Typical applications include:
- Thermal Imaging
- Machine Vision
- Hyperspectral Imaging
- Medical Diagnostics
- Aerospace & Defense
- Industrial Inspection
- Scientific Instrumentation
- Security & Surveillance
Engineering Design Example
Wide Field-of-View LWIR Lens Optimization
Shanghai Optics developed a custom LWIR optical system that increased the field of view from 103° to 127° by replacing conventional spherical elements with an optimized aspherical design. The result was improved optical performance, reduced system complexity, and lower manufacturing cost while maintaining excellent image quality.
Engineering Resources
IR Lens Selection Guide
Compare SWIR, MWIR, LWIR, and NIR lenses and learn how to select the right infrared optics based on wavelength, application, and system requirements.
Need a Custom IR Lens?
Whether you’re developing a SWIR, MWIR, LWIR, or NIR imaging system, Shanghai Optics provides expert engineering support from optical design through prototype development and volume production.
Related Content
Engineering & Manufacturing Capabilities
Shanghai Optics provides comprehensive engineering and manufacturing capabilities for infrared optical systems. Rather than offering one-size-fits-all products, we tailor every solution to each application’s optical, mechanical, and manufacturing requirements.
Infrared Optical Solutions

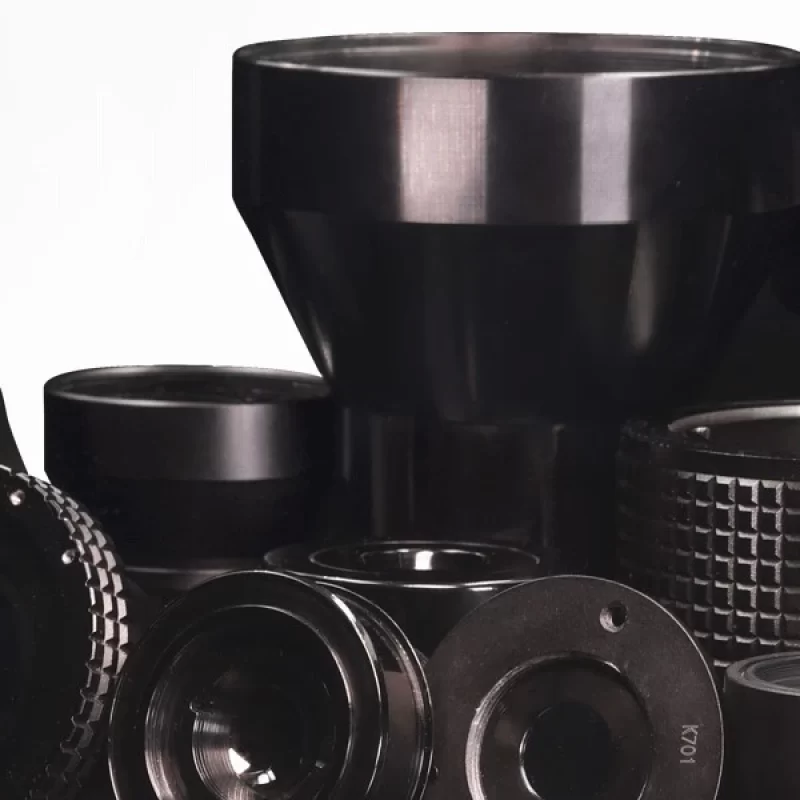

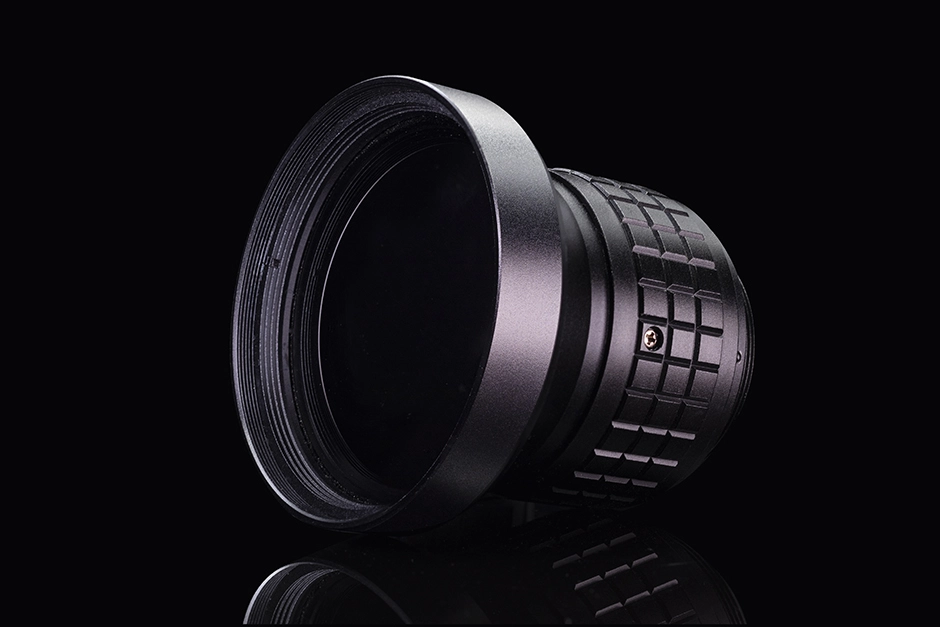

Our product portfolio includes objective lenses, fixed focal length lenses, zoom lenses, beam expanders, aspherical optics, dual-band VIS-SWIR optical systems, and complete opto-mechanical assemblies. Every design is optimized for the required wavelength range, imaging performance, and system integration.
Infrared Optical Materials
We manufacture infrared optics using industry-proven materials including Germanium (Ge), Zinc Selenide (ZnSe), Zinc Sulfide (ZnS), Chalcogenide Glass, Silicon, Sapphire, Calcium Fluoride (CaF₂), and other specialty infrared materials. Material selection is optimized according to wavelength range, environmental conditions, and system performance requirements.
Manufacturing & Optical Coating
Our vertically integrated manufacturing combines precision optical fabrication, advanced optical coating, precision assembly, and comprehensive quality inspection. Custom anti-reflection coatings are available for Visible, NIR, SWIR, MWIR, and LWIR applications to maximize optical transmission and overall system performance.
Engineering Support
From concept through production, our engineering team provides practical support including optical system design, mechanical integration, material selection, tolerance analysis, prototype optimization, and OEM manufacturing. We work closely with customers to simplify development while ensuring manufacturable, high-performance optical solutions.
Need help?
We offer consultations and initial feasibility studies. If you have questions about limitations or lens capabilities we’re more than happy to work through your proposed custom components. As an unmatched custom optical provider, we’ll do everything that we can bring your vision to life.
