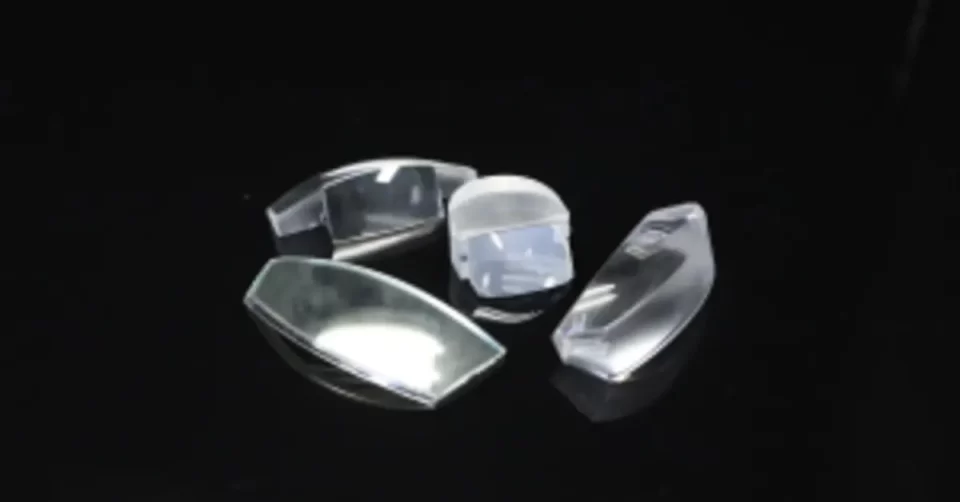

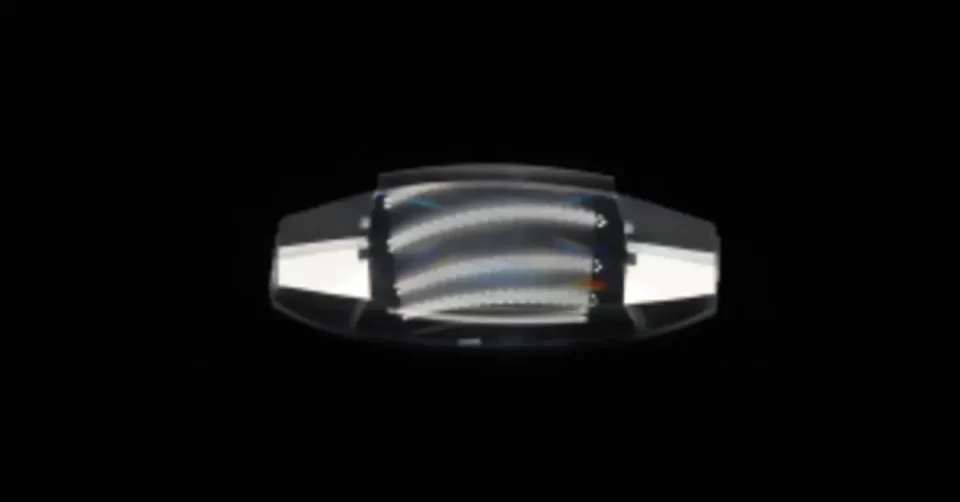

Molded Plastic/Acrylic Aspheric Lens

pro9















Plastic/Acrylic Aspheric lenses are less costly and lighter than glass elements. For most applications, plastic optical components can meet the most demanding optical requirements, but at a much lower price than glass lenses. Our precision injection molding technique combined with specialized skills allows us to produce a variety of plastic optics. Plastic lenses can be coated. A number of different coatings are available that can improve abrasion resistance and minimize reflections.
Shanghai Optics offers custom designed molded and polished plastic aspheric elements for a wide variety of illumination and imaging applications. Quality assurance is guaranteed through our modern production line and inspection instruments, which ensures all components are fabricated and coated in a consistent manner.

Factory Standard – Contact us for manufacturing limit or custom specifications.

  • Substrate Material: Plastic/Acrylic
  • Mold and polishing
  • Prescription Information Available
  • High Numerical Aperture Designs for Superior Light Collection
ClassicBest
Diameter:±0.1mm±0.03mm
Thickness:±0.1mm±0.03mm
Form error (spherical):Power 5 lambda/Irr 1lambdaPower 1 lambda/Irr 1/4 lambda
Form error (aspherical):P-V < 2µmP-V < 0.5µm
Decenter:3′1′
Roughness:Ra 0.005µmRa 0.003µm

Please contact our sales engineers for your custom Molded Plastic/Acrylic Aspheric Lens solutions today.

Call us to find out more about our services at +1 732-321-6915 or our design services team info@shanghai-optics.com directly for free initial technical consultation.
