An Overview of Adaptive Optics Technology

Adaptive optics is a powerful tool developed to enhance the resolution of optical systems affected by environmental influences or imperfections in the observed subject. In practical use, ideal optical performance is rarely achieved without some form of correction, prompting the need for technologies that can compensate for such deviations and improve image clarity.

A simple analogy is the human eye. Just as nearsightedness or farsightedness can be corrected with eyeglasses, optical systems require mechanisms to fix aberrations. However, unlike traditional glasses, which remain static, adaptive optics introduces a flexible solution—one that continuously adjusts in real time to optimize performance.

At the core of adaptive optics is the use of a deformable mirror, which actively corrects wavefront distortions by reshaping itself to counteract the aberrations. This dynamic feedback loop significantly reduces environmental impacts and dramatically improves image quality. In essence, adaptive optics integrates real-time sensing and correction, combining physics and engineering to deliver sharper and more accurate images.

What Is a Wavefront?

In optics, a wavefront is the surface formed by points of equal phase as a light wave propagates. For instance, a point light source produces a spherical wavefront, while parallel light rays form a plane wavefront. In a perfect system, these wavefronts would maintain their ideal shapes. However, imperfections in optical elements can distort these wavefronts, resulting in what’s known as wavefront error.

How Adaptive Optics Works

An adaptive optics system operates in a closed loop, constantly measuring, computing, and correcting optical distortions. The three primary components are:

Wavefront Sensor
This device detects the shape and distortion of the wavefront in real time. A commonly used sensor is the Hartmann-Shack wavefront sensor, which comprises a microlens array and an image sensor. The microlens array breaks the incoming wavefront into smaller sections. If the wavefront is distorted, the resulting image spots will be displaced. These displacements are used to reconstruct the overall shape of the wavefront.
Wavefront Controller
Once the wavefront is analyzed, the controller interprets the data and calculates the required adjustments. It then generates signals that instruct the correction mechanism on how to reshape the optical path.
Correction Element
Usually a deformable mirror, the correction element physically alters its shape to counter the detected aberrations. By doing so, it effectively produces a wavefront distortion opposite to the original error, thereby restoring image quality.

Key Applications of Adaptive Optics

Biological Microscopy
High-resolution microscopy, especially in thick or complex biological samples, suffers from optical aberrations that degrade image clarity. Adaptive optics has been successfully integrated into advanced microscopy systems to correct these issues. By inserting a beamsplitter and a deformable mirror into the optical path, systems can analyze and correct the wavefront before it reaches the detector, significantly enhancing resolution and detail in biological imaging.

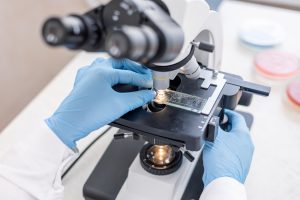

Biological Microscope

Retinal Imaging
Adaptive optics has also transformed retinal imaging. Traditional ophthalmoscopes struggle to visualize fine retinal structures due to the eye’s inherent aberrations. Adaptive optics systems, however, allow for real-time correction of these imperfections, providing highly detailed images of the retina. This capability is crucial for early detection and monitoring of eye diseases.

Astronomical Telescopes
One of the earliest and most impactful uses of adaptive optics was in astronomy. Large telescopes on Earth are often hindered by atmospheric turbulence, which distorts incoming light from celestial bodies. Adaptive optics helps mitigate this issue by using wavefront sensors and deformable mirrors to correct these distortions in real time. As a result, modern observatories can achieve near-diffraction-limited imaging, which would otherwise be impossible through Earth’s atmosphere.

The Future of Adaptive Optics

Adaptive optics stands as a critical advancement in the field of optics. Its real-time, self-correcting nature makes it invaluable across disciplines—from astronomy and biomedical research to clinical diagnostics. As technologies continue to evolve, adaptive optics is poised to play an even greater role in pushing the boundaries of imaging performance and clarity.
