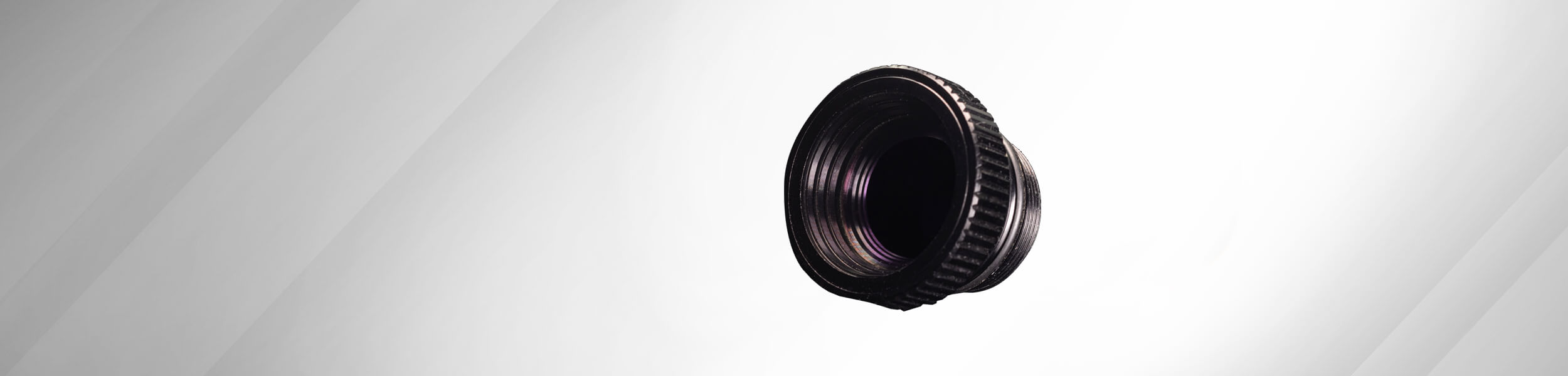

NIR Lenses or Near Infrared Lenses are infrared lenses optimized for the near infrared region, from 900 nm to 1700 nm. At Shanghai Optics we manufacture high quality NIR lenses for applications ranging from NIR imaging to fiber optics to focusing and expanding NIR lasers.
We offer a wide range of IR substrates, including Ge, Si, ZnSe, ZnS, ZnS , CaF2, BaF2, GaAs, and Chalcogenide. Our IR Optics are available with multiple anti-reflection coating options that can increase durability and improve performance.
Our in-stock options include both fixed and manual focus lenses, with focal lengths ranging from 12.5 to 200. C-Mount, F-Bayonet, M37x0.5 and M30x1 interface options are all available. If our in-shelf lenses do not meet your needs, custom lenses are another option. Our engineering team can work with you to design and produce the ideal NIR lens for your application, and our state of the art factory enables us to bring your design through prototype to production without difficulty. Each of our lenses are subject to careful quality control, and are guaranteed to meet all stated ISO and Mil standards.
Please contact us for a current price list or to discuss your custom order.
Product currently out of stock. Please visit our Stock IR lens page for updated list.
Please visit our Stock IR lens page for updated list.
| Model | Focal Length (mm) | F# | Sensor | FOV(°) | Wave Length (um) | Focus Method | Focus Range | MBFL(mm) | Mount | Dimensions (mm) | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SO-HG-0001 | 2.1mm | 1.1 | 80X60 35μm | 91.62（D）x72.28(H)x53.46(V) | 8-12um | fixed | 0.1m~∞ | 5.1 | M16x0.5 | Ф19.5*L10.5 | |
| SO-HG-0002 | 5mm | 1.2 | 160×120 17μm | 39.1(D)x31.17(H)x23.34(V) | 8-12um | fixed | 0.3m~∞ | 7.22 | M20x0.75 | Ф20.5*L11 | |
| SO-HG-0003 | 1.8mm | 1.1 | 160×120 17μm | 115.45（D）x91(H)x66.2(V) | 8-12um | fixed | 0.1m~∞ | 3.5 | M17X0.5 | Ф22*L11.2 | |
| SO-HG-0004 | 6.8mm | 1.2 | 240×180 17μm | 43.7(D)x34.8(H)x26(V) | 8-12um | fixed | 0.3m~∞ | 4.2 | M17X0.75 | Ф20*L16 | |
| SO-HG-0005 | 2.64mm | 1.1 | 240×180 17μm | 112.5(D)x90.9(H)x67.5(V) | 8-12um | fixed | 0.1m~∞ | 5.4 | M17X0.75 | Ф20*L16.8 | |
| SO-HG-0006 | 1.55mm | 1.3 | 256×192 12μm | 166（D）x120(H)x86.5(V) | 8-12um | fixed | 0.4m~∞ | 4.8 | M17x0.75 | Ф19.6*L11.9 | |
| SO-HG-0007 | 3mm | 1.2 | 256×192 12μm | 71.18（D）x56.02(H)x41.66(V) | 8-12um | fixed | 0.1m~∞ | 4.8 | M17x0.75 | Ф17*L10.6 | |
| SO-HG-0008 | 3.5mm | 1 | 256×192 12μm | 62（D）x49.1(H)x36.7(V) | 8-12um | fixed | 0.1m~∞ | 4 | M14x0.5 | Ф15*L9 | |
| SO-HG-0009 | 3.5mm | 1 | 256×192 12μm | 62.69（D）x50(H)x37.47(V) | 8-12um | fixed | 0.1m~∞ | 4 | M14x0.5 | Ф20*L11.9 | |
| SO-HG-0010 | 3.7mm | 1.1 | 256×192 12μm | 56.6(D)x40.15(H)x30.48(V) | 8-12um | fixed | 0.1m~∞ | 2.6 | M9x0.5 | Ф11*L8.6; | |
| SO-HG-0011 | 3.7mm | 1.1 | 256×192 12μm | 56.84(D)x45.6(H)x34.4(V) | 8-12um | fixed | 0.1m~∞ | 3.15 | M10x0.5 | Ф10*L6 | |
| SO-HG-0012 | 4mm | 1 | 256×192 12μm | 56.63(D)x44.36(H)x32.8(V) | 8-12um | fixed | 0.2m~∞ | 5.3 | M17x0.75 | Ф17*L10.1 | |
| SO-HG-0013 | 4mm | 1 | 256×192 12μm | 56.16（D）x44.49(H)x33.16(V) | 8-12um | fixed | 0.2m~∞ | 4.8 | M17x0.75 | Ф17*L10.6 | |
| SO-HG-0014 | 4.3mm | 1.2 | 256×192 12μm | 50.28（D）x40.22(H)x30.32(V) | 8-12um | fixed | 0.1m~∞ | 2.575 | M9x0.25 | Ф9*L5.3 | |
| SO-HG-0015 | 5.3mm | 1 | 256×192 12μm | 41.4（D）x33.09(H)x24.84(V) | 8-12um | fixed | 0.3m~∞ | 4 | M14x0.5 | Ф15*L9 | |
| SO-HG-0016 | 7mm | 1 | 256×192 12μm | 30.86(D)x24.8(H)x18.7(V) | 8-12um | fixed | 0.2m~∞ | 4 | M14x0.5 | Ф15*L9 | |
| SO-HG-0017 | 7mm | 1 | 256×192 12μm | 31.90(D)x25.36(H)x18.93(V) | 8-12um | fixed | 0.2m~∞ | 4.8 | M17x0.75 | Ф17*L10.6 | |
| SO-HG-0018 | 9mm | 1 | 256×192 12μm | 24.56(D)x19.63(H)x14.71(V) | 8-12um | fixed | 0.2m~∞ | 4.8 | M17x0.75 | Ф17*L10.6 | |
| SO-HG-0019 | 13mm | 1 | 256×192 12μm | 13.5(H)x10.13(V) | 8-12um | fixed | 0.5m~∞ | 6 | M17x0.75 | Ф21*L15 | |
| SO-HG-0020 | 15mm | 1 | 256×192 12μm | 14.65（D）x11.73(H)x8.8(V) | 8-12um | fixed | 0.5m~∞ | 4 | M14x0.5 | Ф24.6*L25 | |
| SO-HG-0021 | 3.5mm | 1.0 | 320×240 30μm | 115.4(D)x90.1(H)×66.2(V) | 8-12um | manual adjustment | 0.5m~∞ | 6.26 | M34×0.75 | Ф32*L31.78; | |
| SO-HG-0022 | 6.5mm | 1.2 | 320×240 17μm | 60.45(D)x48(H)×36(V) | 8-12um | fixed | 0.5m~∞ | 15.8 | M32×1.5 | Ф40.8*L29.6; | |
| SO-HG-0023 | 15mm | 1.0 | 320×240 20μm | 30.76(D)x24.5(H)×18.4(V) | 8-12um | fixed | 0.5m~∞ | 8.72 | M20×0.5 | Ф24*L19; | |
| SO-HG-0024 | 25mm | 1.2 | 320×240 17μm | 15.54(D)x12.4(H)×9.3(V) | 8-12um | fixed | 0.5m~∞ | 15.8 | M32×1.5 | Ф41*L29.4; | |
| SO-HG-0025 | 25mm | 1.2 | 320×240 17μm | 15.54(D)x12.4(H)×9.3(V) | 8-12um | fixed | 0.5m~∞ | 8 | M34x0.75 | Ф42*L32.5 | |
| SO-HG-0026 | 25mm | 1.2 | 320×240 17μm | 15.54(D)x12.4(H)×9.3(V) | 8-12um | manual adjustment | 0.5m~∞ | 8.5 | M34×1.5 | Ф43*L33.9; | |
| SO-HG-0027 | 45mm | 1.2 | 320×240 20μm | 8.7(D)x7.0(H)×5.2(V) | 8-12um | fixed | 2m~∞ | 14.6 | M32×1.5 | Ф55.5*L62.0; | |
| SO-HG-0028 | 7mm | 1.1 | 400×300 17μm | 67.24(D)x54.4(H)x41.1(V) | 8-12um | fixed | 0.3m~∞ | 7.5 | M34x0.75 | Ф35*L12.5 | |
| SO-HG-0029 | 3.7mm | 1.2 | 384×288 12μm | 78.38(D)x65.69(H)x50.93(V) | 8-12um | fixed | 0.1m~∞ | 6.1 | M20x0.5 | Ф25*L17.4 | |
| SO-HG-0030 | 4mm | 1 | 384×288 17μm | 110.6(D)x90.38(H)x68.74(V) | 8-12um | fixed | 0.5m~∞ | 7.5 | M34×0.5 | Ф38*L28.8 | |
| SO-HG-0031 | 4mm | 1.2 | 384×288 17μm | 115.4(D)x93(H)x69.6(V) | 8-12um | fixed | 0.5m~∞ | 7 | M16x0.5 | Ф25*L19 | |
| SO-HG-0032 | 6.2mm | 1 | 384×288 17μm | 78.21(D)x60.27(H)x44.8(V) | 8-12um | fixed | 0.5m~∞ | 8 | M34×0.5 | Ф36*L19.8 | |
| SO-HG-0033 | 6.3mm | 1.1 | 384×288 12μm | 49.4(D)x39.7(H)x30.2(V) | 8-12um | fixed | 0.1m~∞ | 6.1 | M20×0.5 | Ф25*L17.4 | |
| SO-HG-0034 | 6.8mm | 1 | 384×288 12μm | 50.08（D）x39.38(H)x29.26(V) | 8-12um | fixed | 0.5m~∞ | 7.5 | M20×0.5 | Ф22*L13.5 | |
| SO-HG-0035 | 6.8mm | 1.2 | 384×288 17μm | 67.18（D)x54.07(H)x40.75(V) | 8-12um | fixed | 0.3m~∞ | 6.1 | M17×0.75 | Ф20*L14.1 | |
| SO-HG-0036 | 6.8mm | 1.2 | 384×288 17μm | 67.2（D）x54.11(H)x40.78(V) | 8-12um | fixed | 0.3m~∞ | 6.1 | M17×0.75 | Ф20*L14.1 | |
| SO-HG-0037 | 7.8mm | 1 | 384×288 17μm | 59.65（D）x47.7(H)x35.77(V) | 8-12um | fixed | 0.5m~∞ | 10 | M30×0.5 | Ф34.5*L28.3 | |
| SO-HG-0038 | 9mm | 1 | 384×288 12μm | 37.16（D)x29.54(H)x22.08(V) | 8-12um | fixed | 0.5m~∞ | 7.5 | M20×0.5 | Ф22*L13.5 | |
| SO-HG-0039 | 10mm | 1 | 384×288 17μm | 46.84(D)x36.5(H)×27(V) | 8-12um | manual adjustment | 0.5m~∞ | 6.44 | M45×1.0 | Ф31*L26.22; | |
| SO-HG-0040 | 10mm | 1 | 384×288 17μm | 45.52(D)x36.84(H)x27.88(V) | 8-12um | fixed | 0.5m~∞ | 4.5 | M25×0.5 | Ф28*L17 | |
| SO-HG-0041 | 10mm | 1 | 384×288 17μm | 45.52(D)x36.84(H)x27.88(V) | 8-12um | fixed | 0.5m~∞ | 4.5 | M25×0.5 | Ф28*L17 | |
| SO-HG-0042 | 13mm | 1 | 384×288 17μm | 35.9(D)x28.8(H)×21.6(V) | 8-12um | fixed | 0.5m~∞ | 9.0 | M25×0.5 | Ф28.5*L18; | |
| SO-HG-0043 | 13mm | 1 | 384×288 17μm | 35.9(D)x28.8(H)×21.6(V) | 8-12um | fixed | 0.5m~∞ | 9.0 | M25×0.5 | Ф28.5*L18; | |
| SO-HG-0044 | 13mm | 1 | 384×288 17μm | 35.9(D)x28.8(H)×21.6(V) | 8-12um | fixed | 0.5m~∞ | 7.43 | M25×0.75 | Ф28*L28; | |
| SO-HG-0045 | 13mm | 1 | 384×288 17μm | 35.9(D)x28.8(H)×21.6(V) | 8-12um | fixed | 0.5m~∞ | 9.0 | M25×0.5 | Ф28.5*L18; | |
| SO-HG-0046 | 13mm | 1.1 | 384×288 17μm | 35.4(D)x28.0(H)x21.3(V) | 8-12um | fixed | 0.5m~∞ | 4.2 | M17x0.75 | Ф20*L15 | |
| SO-HG-0047 | 13mm | 1 | 384×288 17μm | 35.97(D)x28.4(H)x21.3(V) | 8-12um | fixed | 0.5m~∞ | 4.2 | M17x0.75 | Ф20.4*L16.8 | |
| SO-HG-0048 | 13mm | 1 | 384×288 17μm | 35.97(D)x28.4(H)x21.3(V) | 8-12um | fixed | 0.5m~∞ | 4.2 | M17x0.75 | Ф20.4*L16.8 | |
| SO-HG-0049 | 13mm | 1 | 384×288 17μm | 34.87(D)x28.2(H)x21.35(V) | 8-12um | fixed | 0.5m~∞ | 7.5 | M25x0.5 | Ф26*L13.5; | |
| SO-HG-0050 | 13mm | 1 | 384×288 17μm | 36.26(D)x28.9(H)x21.6(V) | 8-12um | fixed | 0.5m~∞ | 7.5 | M25x0.5 | Ф26*L13.5; | |
| SO-HG-0051 | 13mm | 1 | 384×288 17μm | 35.42（D）x28.5(H)×21.48(V) | 8-12um | fixed | 0.5m~∞ | 7.5 | M20x0.75 | Ф22*L16 | |
| SO-HG-0052 | 15mm | 1 | 384×288 17μm | 31.09(D)x24.7(H)×18.5(V) | 8-12um | manual adjustment | 0.5m~∞ | 7.5 | M45×1.0 | Ф31*L27.2; | |
| SO-HG-0053 | 18mm | 1 | 400×300 12μm | 19.02(D)x15.24(H)×11.44(V) | 8-12um | fixed | 0.5m~∞ | 5.5 | M24x0.5 | Ф26.9*L29 | |
| SO-HG-0054 | 19mm | 1.0 | 384×288 12μm | 14.44(H)x10.84(V) | 8-12um | manual adjustment | 0.5m~∞ | 4.9 | flange | Ф45.1*L37.1 | |
| SO-HG-0055 | 19mm | 1 | 384×288 17μm | 24.56(D)x19.68(H)x14.78(V) | 8-12um | fixed | 0.5m~∞ | 7.43 | M25x0.75 | Ф28*L24.6 | |
| SO-HG-0056 | 19mm | 1.1 | 384×288 17μm | 15.35(D)x12.26(H)x9.24(V) | 8-12um | fixed | 1m~∞ | / | M26X0.5 | Ф44.4*L29.3 | |
| SO-HG-0057 | 19mm | 1.2 | 384×288 17μm | 25.56(D)x19.68(H)x14.78(V) | 8-12um | fixed | 0.5m~∞ | 4.2 | M17x0.75 | Ф22.7*L16.3; | |
| SO-HG-0058 | 25mm | 1.0 | 384×288 17μm | 18.72(D)x15.0(H)×11.2(V) | 8-12um | manual adjustment | 1m~∞ | 7.5 | M45×1.0 | Ф40*L36.2; | |
| SO-HG-0059 | 25mm | 1.0 | 384×288 17μm | 18.72(D)x15.0(H)×11.2(V) | 8-12um | fixed | 1m~∞ | 8.5 | M34x0.75 | Ф42*L35.2 | |
| SO-HG-0060 | 25mm | 1.0 | 384×288 17μm | 18.72(D)x15.0(H)×11.2(V) | 8-12um | fixed | 1m~∞ | 8 | M25x0.5 | Ф30.6*L34.3 | |
| SO-HG-0061 | 25mm | 1 | 384×288 17μm | 18.6(D)x14.9(H)×11.2(V) | 8-12um | manual adjustment | 1m~∞ | 8.5 | M33x0.75 | Ф38*L37.7 | |
| SO-HG-0062 | 35mm | 1.0 | 384×288 17μm | 13.35(D)x10.68(H)×8(V) | 8-12um | manual adjustment | 2m~∞ | 7.25 | M45×1.0 | Ф47*L50.5; | |
| SO-HG-0063 | 35mm | 1.0 | 384×288 12μm | 9.43(D)x7.54(H)×5.66(V) 13.34(D)x10.68(H)× 8(V) | 8-12um | fixed | 2m~∞ | 11 | M33×0.5 | Ф47.6*L48.5 | |
| SO-HG-0064 | 35mm | 1.0 | 384×288 17μm | 13.2(D)x10.52(H)×7.88(V) | 8-12um | manual adjustment | 2m~∞ | 8 | M33×0.75 | Ф45*L45.4 | |
| SO-HG-0065 | 50mm | 1.0 | 384×288 17μm | 9.38(D)x7.5(H)×5.62(V) | 8-12um | manual adjustment | 5m~∞ | 7.34 | M45×1.0 | Ф61*L69.2; | |
| SO-HG-0066 | 50mm | 1.1 | 384×288 17μm | 6.56(D)x5.26(H)×3.96(V) | 8-12um | fixed | 5m~∞ | 0.36 | flange | Ф45*L57.64 | |
| SO-HG-0067 | 5mm | 1.0 | 400×300 12μm | 61.6(H)×43.7(V) | 8-12um | fixed | 5m~∞ | 4.5 | M24×0.5 | Ф25.35*L15 | |
| SO-HG-0068 | 50mm | 1.0 | 400×300 17μm | 7.77(H)×5.83(V) | 8-12um | fixed | 9.5 | M34×0.5 | Ф58.4*L57.5 | ||
| SO-HG-0069 | 25mm | 1.2 | 640×480 17μm | 30.22(D)x24.55(H)x18.54(V) | 8-12um | fixed | 2m~∞ | 11.1 | M34x0.75 | Ф32*L28.5 | |
| SO-HG-0070 | 55mm | 1.2 | 640×480 17μm | 14 gree @y=6.8mm | 8-12um | fixed | 5m~∞ | 16.5 | M37x0.0.5 | Ф51.2*L53.6 | |
| SO-HG-0071 | 55mm | 1.2 | 640×480 17μm | 14 gree @y=6.8mm | 8-12um | electrically adjust | 5m~∞ | 15.5 | flange | 65*62.4*54.6 | |
| SO-HG-0072 | 4.8mm | 1.2 | 640×512 12μm | 111.04(D)x89.02(H)×72.2(V) | 8-12um | fixed | 6.93 | M34x0.5 | Ф30*L19.54 | ||
| SO-HG-0073 | 7.8mm | 1.2 | 640×512 14μm | 90.1(D)x62.44(H)x50.92(V) | 8-12um | fixed | 0.5m~∞ | 10 | M30x0.5 | Ф34.5*L28.3 | |
| SO-HG-0074 | 8.5mm | 1.2 | 640×512 12μm | 65.05(D)x50.64(H)x40.64(V) | 8-12um | fixed | 0.5m~∞ | 6 | M14x0.5 | Ф14*L8.5 | |
| SO-HG-0075 | 9mm | 1 | 640×512 12μm | 65.4(D)x50.09(H)x39.7(V) | 8-12um | fixed | 0.5m~∞ | 10 | M30x0.5 | Ф34.5*L28.3 | |
| SO-HG-0076 | 9.1mm | 1 | 640×512 12μm | 63.1(D)x48.6(H)x38.6(V) | 8-12um | fixed | 0.5m~∞ | 7.5 | M20x0.5 | Ф22*L13.5 | |
| SO-HG-0077 | 9.2mm | 1.2 | 640×512 12μm | 60.85(D)x47.51(H)x38.12(V) | 8-12um | fixed | 0.5m~∞ | 3.91 | M15x0.5 | Ф15*L12.5 | |
| SO-HG-0078 | 13mm | 1 | 640×512 17μm | 62.38(D)x48.16(H)x38.4(V) | 8-12um | fixed | 0.5m~∞ | 9.5 | M34x0.5 | Ф38*L37 | |
| SO-HG-0079 | 13mm | 1 | 640×512 17μm | 62.05(D)x48.28(H)x38.54(V) | 8-12um | fixed | 0.5m~∞ | 10 | M30x0.5 | Ф34.5*L28.3 | |
| SO-HG-0080 | 13.5mm | 1 | 640×512 12μm | 40.77(D)x32.06(H)x25.79(V) | 8-12um | fixed | 0.5m~∞ | 8 | M20x0.5 | Ф23*L17 | |
| SO-HG-0081 | 15mm | 1 | 640×512 17μm | 54.53(D)x39.9(H)×32.4(V) | 8-12um | manual adjustment | 0.8m~∞ | 8.95 | M45×1.0 | Ф45*L36.6 | |
| SO-HG-0082 | 15mm | 1 | 640×512 17μm | 54.53(D)x39.9(H)×32.4(V) | 8-12um | manual adjustment | 0.8m~∞ | 7.5 | M34x0.75 | Ф36*L36.6 | |
| SO-HG-0083 | 15mm | 1 | 640×512 17μm | 54.53(D)x39.9(H)×32.4(V) | 8-12um | fixed | 0.8m~∞ | 7.5 | M45×1.0 | Ф45*L35.5 | |
| SO-HG-0084 | 16mm | 1 | 640×512 20μm | 56.54(D)x44.63(H)x35.94(V) | 8-12um | fixed | 10m~∞ | 7.5 | M26×0.5 | Ф36*L25.4 | |
| SO-HG-0085 | 19mm | 1 | 640×512 17μm | 41.48(D)x32.46(H)x26.06(V) | 8-12um | fixed | 0.8m~∞ | 9.5 | M34×0.5 | Ф38*L21.5 | |
| SO-HG-0086 | 19mm | 1 | 640×512 12μm | 29.14(D)x23(H)x18.4(V) | 8-12um | fixed | 1m~∞ | 9 | M25x0.5 | Ф28*L20 | |
| SO-HG-0087 | 19mm | 1 | 640×512 12μm | 28.88(D)x22.78(H)x18.34(V) | 8-12um | manual adjustment | 0.5m~∞ | 7.5 | M25x0.75 | Ф31.6*L24.3 | |
| SO-HG-0088 | 19mm | 1 | 640×512 12μm | 29.5(D)x23.08(H)x18.48(V) | 8-12um | electrically adjust | 1m~∞ | 9 | flange | 71.1*75*70.6 | |
| SO-HG-0089 | 25mm | 1 | 640×512 12μm | 31.07(D)x24.55(H)x19.75(V) | 8-12um | fixed | 0.8m~∞ | 9.5 | M34×0.5 | Ф45*L30 | |
| SO-HG-0090 | 25mm | 1 | 640×512 12μm | 23.12(D)x17.58(H)x14.07(V) | 8-12um | manual adjustment | 1m~∞ | 7.1 | M25x0.75 | 35*L36.6 | |
| SO-HG-0091 | 25mm | 1.1 | 640×512 12μm | 22.45(D)x17.56(H)x14.07(V) | 8-12um | fixed | 1m~∞ | 11.5 | M31x2.25(p=0.75 | Ф34*L39.9 | |
| SO-HG-0092 | 25mm | 1 | 640×512 12μm | 22.14(D)x17.4(H)x14(V) | 8-12um | fixed | 1m~∞ | 9 | M25x0.5 | Ф35*L26 | |
| SO-HG-0093 | 26mm | 1.2 | 640×512 12μm | 30(D)x23.6(H)x19(V) | 8-12um | manual adjustment | 0.5m~∞ | 7 | M32X0.75 | Ф41*L30.2 | |
| SO-HG-0094 | 33mm | 1.2 | 640×512 12μm | 18.6(D)x14.62(H)x11.73(V) | 8-12um | fixed | 22.5mm | 9 | M30X0.75 | Ф34*L63.13 | |
| SO-HG-0095 | 35mm | 1 | 640×512 17μm | 22.3(D)x17.67(H)x14.18(V) | 8-12um | fixed | 3m~∞ | 7.75 | M45x1 | Ф47*L45.5 | |
| SO-HG-0096 | 35mm | 1 | 640×512 17μm | 22.3(D)x17.67(H)x14.18(V) | 8-12um | fixed | 3m~∞ | 9.5 | M34x0.5 | Ф45*L38 | |
| SO-HG-0097 | 35mm | 1 | 640×512 17μm | 22.3(D)x17.67(H)x14.18(V) | 8-12um | fixed | 3m~∞ | 7 | M34x0.5 | Ф43*L40.5 | |
| SO-HG-0098 | 35mm | 1 | 640×512 17μm | 22.3(D)x17.67(H)x14.18(V) | 8-12um | fixed | 3m~∞ | 7.5 | M38X3(P=1) | Ф47*L40 | |
| SO-HG-0099 | 35mm | 1 | 640×512 17μm | 22.3(D)x17.67(H)x14.18(V) | 8-12um | fixed | 3m~∞ | 13.5 | M33X0.75 | Ф45.6*L44.05 | |
| SO-HG-0100 | 35mm | 1 | 640×512 17μm | 22.3(D)x17.67(H)x14.18(V) | 8-12um | fixed | 3m~∞ | 7.5 | M38X3(P=1) | Ф47*L40 | |
| SO-HG-0101 | 35mm | 1 | 640×512 17μm | 22.3(D)x17.67(H)x14.18(V) | 8-12um | fixed | 3m~∞ | 13.5 | M33X0.75 | Ф45.6*L44.05 | |
| SO-HG-0102 | 35mm | 1 | 640×512 17μm | 22.3(D)x17.67(H)x14.18(V) | 8-12um | manual adjustment | 3m~∞ | 7.5 | M33X0.75 | Ф49*L42.8 | |
| SO-HG-0103 | 35mm | 1 | 640×512 17μm | 23.12(D)x17.67(H)x14.18(V) | 8-12um | manual adjustment | 3m~∞ | 7.5 | M33X0.75 | Ф45*L45.4 | |
| SO-HG-0104 | 35mm | 1 | 640×512 12μm | 16.14(D)x12.6(H)x10.07(V) | 8-12um | manual adjustment | 3m~∞ | 8.3 | M33X0.75 | Ф45.7*L47.7 | |
| SO-HG-0105 | 40mm | 1 | 640×512 17μm | 13.95(D)x10.93(H)x8.76(V) | 8-12um | fixed | 10m~∞ | 8.7 | M27x0.5 | Ф46*L40.5 | |
| SO-HG-0106 | 43mm | 1 | 640×512 12μm | 13.0(D)x10.2(H)x8.2(V) | 8-12um | fixed | 5m~∞ | 9.285 | MJ38x3(P=3)-6g | Ф53.6*L47.9 | |
| SO-HG-0107 | 50mm | 1 | 640×512 17μm | 15.72(D)x12.42(H)x9.95(V) | 8-12um | fixed | 3m~∞ | 9.5 | M34x0.5 | Ф58.4*L48.64 | |
| SO-HG-0108 | 50mm | 1 | 640×512 17μm | 15.72(D)x12.42(H)x9.95(V) | 8-12um | electrically adjust | 3m~∞ | 7.5 | M34x0.75 | Ф50.5*L75*81 | |
| SO-HG-0109 | 50mm | 1 | 640×512 17μm | 15.72(D)x12.42(H)x9.95(V) | 8-12um | fixed | 3m~∞ | 8.5 | M38X1.5(P=0.5) | Ф61*L50.15 | |
| SO-HG-0110 | 50mm | 1.2 | 640×512 17μm | 15.6(D)x12.42(H)x9.95(V) | 8-12um | Focus Mechanism | 3m~∞ | 7.02 | flange | Ф54*L57 | |
| SO-HG-0111 | 50mm | 1 | 640×512 17μm | 15.68(D)x12.4(H)x10(V) | 8-12um | Focus Mechanism | 5m~∞ | 4.795 | flange | Ф59.8*L66 | |
| SO-HG-0112 | 50mm | 1.1 | 640×512 12μm | 11.07(D)x8.7(H)x7(V) | 8-12um | fixed | 5m~∞ | 9 | M44x1.5 | Ф54*L49 | |
| SO-HG-0113 | 50mm | 1.1 | 640×512 12μm | 11.08(D)x8.7(H)x7(V) | 8-12um | fixed | 5m~∞ | 9 | M44x1.5 | Ф54*L49 | |
| SO-HG-0114 | 60mm | 1 | 640×512 17μm | 13.76(D)x10.40(H)x8.31(V) | 8-12um | fixed | 4m~∞ | 9.5 | M34x0.5 | Ф70*L38 | |
| SO-HG-0115 | 75mm | 1 | 640×512 17μm | 10.6(D）x8.3(H)x6.647(V) | 8-12um | fixed | 5m~∞ | 8 | M34x0.5 | Ф88*L83.75 | |
| SO-HG-0116 | 75mm | 1 | 640×512 17um | 10.6(D)x8.3(H)x6.647(V) | 8-12um | electrically adjust | 5m~∞ | 7.55 | M45x0.5 | Ф 104.4*L101.6 | |
| SO-HG-0117 | 75mm | 1.2 | 640×512 17μm | 10.45(D)x8.3(H)x6.6(V) | 8-12um | Focus Mechanism | 10m~∞ | 7 | flange | Ф72*L64.3 | |
| SO-HG-0118 | 100mm | 1 | 640×512 17μm | 7.97(D)x6.23(H)x5.01(V) | 8-12um | electrically adjust | 15m~∞ | 7.25 | M45x1 | Ф133*L130.2 | |
| SO-HG-0119 | 100mm | 1.2 | 640×512 17μm | 7.98(D)x6.23(H)x4.98(V) | 8-12um | fixed | 5m~∞ | 8.5 | M34x0.75 | Ф101*L101 | |
| SO-HG-0120 | 36-180mm | 1.2 | 640×512 17μm | 4.4(D)x3.5（H)x2.8(V) | 8-12um | electrically adjust | 2m~∞ | 7.25 | M45×1 | Ф217*L269.3 | |
| SO-HG-0121 | 14mm | 1 | 1024×768 14μm | 65.93x 53.05 x 40° | 8-12um | Focus Mechanism | 20mm-600mm | 7.75 | M45x1 | Ф55.7*L99 | |
| SO-HG-0122 | 16mm | 1.0 | 1024×768 14μm | 63.42(D)x50(H)x38.17(V) | 8-12um | fixed | 1.2m~∞ | 15.1 | M34x0.75 | 48x48x47.75 | |
| SO-HG-0123 | 16mm | 1.0 | 1024×768 14μm | 63.47(D)x50(H)x38.17(V) | 8-12um | Focus Mechanism | 0.1m~∞ | 7.75 | M45x1 | Ф53.7*L74.5 | |
| SO-HG-0124 | 50mm | 1.35 | 1024×768 14μm | 10.14(D)x7.91(H)x5.86(V)(20mm) | 8-12um | Focus Mechanism | 20mm | 7 | M45x1 | Ф72*L152.6 | |
| SO-HG-0125 | 30mm | 1 | 1024×768 14μm | 101.06×80.38x60mm(150mm) | 8-12um | Focus Mechanism | 100mm-300mm | 7.75 | M45x1 | Ф53*L61 | |
| SO-HG-0126 | 70mm | 1.2 | 1024×768 14μm | 14.46（D）x11.6(H)x8.75(V) | 8-12um | electrically adjust | 10m~∞ | 5 | flange | Ф66*L73 | |
| SO-HG-0127 | 8.7mm | 1.2 | 1280×1024 12μm | 109.56（D）x90.45(H)x75.1(V) | 8-12um | fixed | 0.5m~∞ | 9 | M34x0.5 | Ф54*L56 | |
| SO-HG-0128 | 32mm | 1.0 | 1280×1024 12μm | 1.81（D）x1.42(H)x1.13(V) | 8-12um | fixed | 13.6mm | 7 | M45x1 | Ф 94.6*L252.75 | |
| SO-HG-0129 | 55mm | 1.0 | 1920×1080 8μm | 18.41（D)x16.07(H)x8.9(V) | 8-12um | fixed | 10m~∞ | 9 | M45x1 | Ф66*L63.5 | |
| SO-HG-0130 | 12mm | 1 | 1280×960 3.75μm | 28.88(D)x23(H)x17.2(V) | 8-12um | fixed | 3 | M19x0.5 | Ф20*L32.5 | ||
| SO-HG-0131 | 22mm | 1960×1200 3.75μm | 22.26(D)x19.08(H)x11.7(V) | 8-12um | fixed | 4.2 | M22.6×0.5 | Ф27.5*L45.93 | |||
| SO-HG-0132 | 19mm | 2.2 | 1000×1000 2.7μm | 8.2(H)x8.2(V) | 8-12um | fixed | 2.19 | M10x0.5 | Ф13.5*L29.75 | ||
| SO-HG-0133 | 70mm | 8 | 960X720 6μm | 4.7(H)x3.53(V) | 8-12um | fixed | 8 | M12X0.5 | Ф14*L28 |
