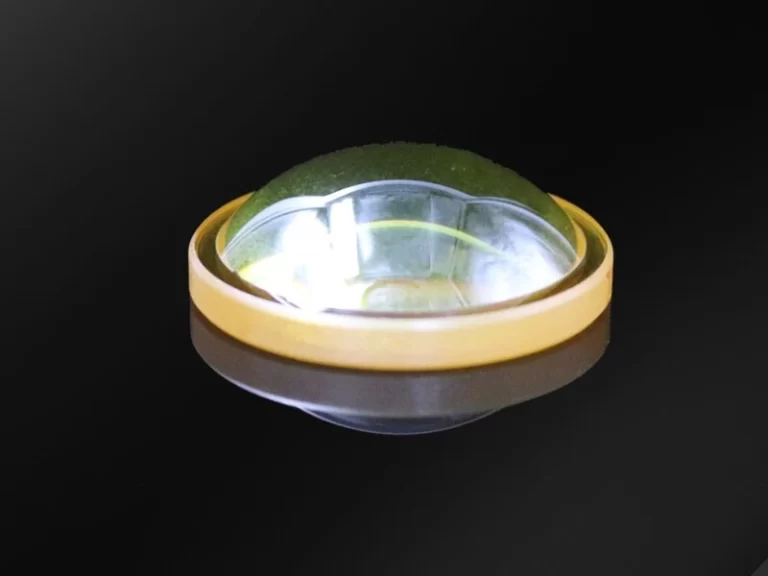

Infrared (IR) Aspheric Lenses

Shanghai Optics has high manufacturing capability of Infrared Aspheric Lenses for substrates such as Germanium (GE), Zinc Selenide (ZnSe) and Silicon (Si) . Our lead time is 3-8 weeks and our prices are super competitive and generally 30-40% less than off-the-shelf/catalogue parts even on single quantity components.

Please see our manufacturing capability below and contact us for a quote for Infrared (IR) Aspheric Lenses from Shanghai Optics.





Aspheric Infrared (IR) Lenses Manufacturing Capability Chart



Germanium Infrared (IR) Aspheric Lenses Manufacturing Capability

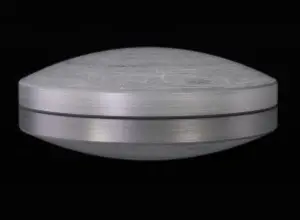

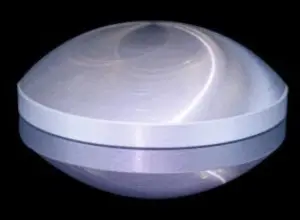

Germanium Infrared (IR) Aspheric Lens

Diameter 5-400mm
Coating Wavelength 8-12um
Surface Quality 5-20mm: 20-10, 20-50mm: 40-20, 50-200mm: 60-40, 200-400mm: 80-50
Aspherical Accuracy 5-20mm: Rt≤0.3um, Ra≤0.03um, 20-50mm: Rt≤0.5um, Ra≤0.05um, 50-200mm: Rt≤0.8um, Ra≤0.08um, 200-400mm: Rt≤1.2um, Ra≤0.15um
Centering (arcmin) 5-20mm: ≤0.5um, 20-50mm: ≤0.8um, 50-200mm: ≤1.0um, 200-400mm: Rt≤2um



Zinc Selenide (ZnSe) Infrared (IR) Aspheric Lenses Manufacturing Capability

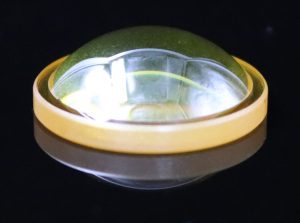

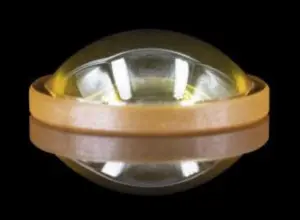

Zinc Selenide Infrared (IR)Aspheric Lens

Diameter 5-400mm
Coating Wavelength 8-12um
Surface Quality 80-50 (due to surface has pitting when polishing)
Surface Accuracy 5-20mm: Rt≤0.3um, Ra≤0.03um, 20-50mm: Rt≤0.5um, Ra≤0.05um, 50-200mm: Rt≤0.8um, Ra≤0.08um, 200-400mm: Rt≤1.2um, Ra≤0.15um
Centering (arcmin) 5-20mm: ≤0.5um, 20-50mm: ≤0.8um, 50-200mm: ≤1.0um, 200-400mm: Rt≤2um



Silicon Infrared (IR) Aspheric Lenses Manufacturing Capability

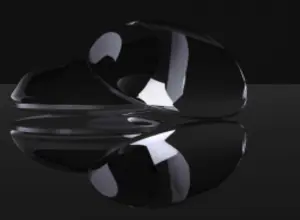

Silicon Infrared (IR) Aspheric Lens

Diameter 5-30mm
Coating Wavelength 3-5um
Surface Quality 80-50
Surface Accuracy 5-20mm: Rt≤0.3um, Ra≤0.03um, 20-30mm: Rt≤0.5um, Ra≤0.05um
Centering (arcmin) 0.5um

Please contact us for a quote and availability for Infrared (IR) Aspheric Lenses from Shanghai Optics.
