PBS

Cylindrical Lenses
Aspheric Lenses
Achromatic Lenses
Spherical Lenses
Optical Prisms
Optical Mirrors
Beamsplitters
Optical Windows
Infrared Optics
Micro Optics
Optical Filters
Colored Glass Filters
Custom Shapes
Laser Optics
Freeform Optics
Fresnel Lenses
Light Pipe Homogenizing Rods
TIR Lens
Medical Device Optics

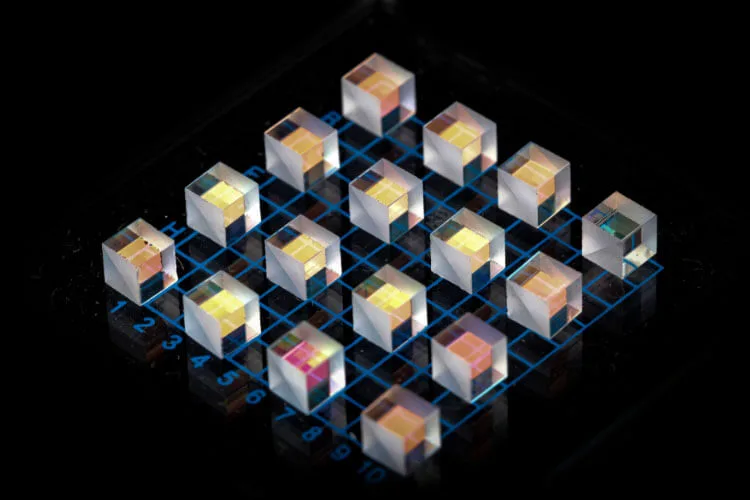

Micro PBS separates a laser beam into two different polarization beams. Micro PBS is generally used in fiber optical communication as the core component of polarizer, polarization beam combiner, and interleaver.

Key Features

  • Low Polarization Dependent Loss
  • Low Insertion Loss
  • Low PMD
  • Environmentally Stable

Applications

  • Polarization Beam Combiner
  • Raman Amplifier
  • Circulators
  • Interleavers

Factory Standard – Contact us for manufacturing limit or custom specifications.

  • Material: BK7 grade A, optical glass
  • Dimension: 0.2mm
  • Flatness: l/4 l@ 632.8 nm per 25mm or better
  • Extinction Ratio: >100:1
  • Beam Deviation: <3 arc minutes
  • Principal Transmittance: >98% and Ts<0.5%
  • Principal Reflectance: Rs>99.5% and Rp<2%

Coatings

Polarization beamsplitter coating on hypotenuse face,
AR-coatings (R<0.25%) on all input and output face.
