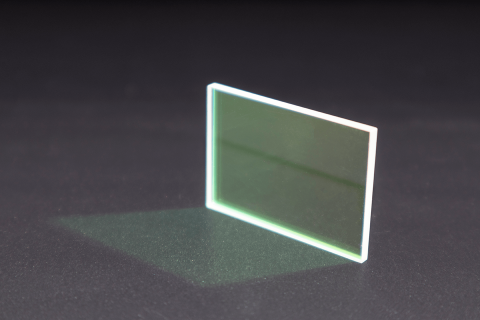

Fused quartz windows have excellent optical quality, low coefficient of thermal expansion, and transmission over 80% at a wavelength range of 260nm to 2500nm. Fused quartz is harder than glass and can be used at temperatures up to 1050°C. Fused quartz windows are widely used in scientific research and many commercial and industrial applications due to their durability, high chemical resistance, high thermal stability, and low cost. Shanghai Optics can produce custom fused quartz windows with a large diameter size and thickness.

Please contact us today for your next custom optics project.



Fused Quartz Windows Custom Specifications:
Dimensions: Diameters 1mm to 500mm/Commercial grade up to 1300mm x 1300mm
Thickness Range: 0.1mm to 50mm (subject to dimension)
Dimension/Thickness: Tolerance up to 0.02mm
Edge Finish: Ground or polished
Surface Quality: 80/50 to 10/5 scratch/dig
Surface Flatness: Up to lambda 10 (@633nm)
Parallelism: Up to 5 seconds
Material Options: Commercial Grade Quartz, Heraeus Herasil, GE124, OHARA SK1300, and Corning 7980
Coating Options: AR coatings, Silver coating, Gold coating, etc
Options: Edges polished, wedges, shapes, drilled holes & beveled angles
