Off-axis parabolic (OAP) mirrors have become essential components in modern optical engineering, offering clear advantages over traditional parabolic reflectors. By eliminating central obstruction and minimizing optical aberrations, OAP mirrors enhance system performance across a wide range of applications—from astronomy to laser material processing.

In this article, we compare OAP mirrors with conventional reflectors and showcase how their unique design leads to superior results in demanding optical systems.

Key Advantages of Off-Axis Parabolic Mirrors

1. Unobstructed Optical Paths
   Traditional mirrors often introduce a central obstruction, limiting light throughput and affecting image clarity. OAP mirrors eliminate this issue, making them ideal for high-resolution imaging and beam delivery.
2. Reduced Aberrations and Diffraction
   The off-axis geometry helps maintain wavefront integrity, minimizing coma and astigmatism in precision optical systems.
3. Greater Design Flexibility
   OAP mirrors enable more compact and customizable layouts—especially useful in systems where beam steering or space constraints are critical.
4. Optimizable Materials and Coatings
   From protected silver and gold to dielectric coatings, OAP mirrors can be tailored to specific wavelength ranges (UV, visible, IR, THz) and environmental conditions.

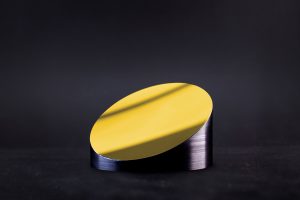

Off-Axis Parabolic Mirror

Real-World Applications: OAP Mirrors in Action

1. Terahertz and Infrared Spectroscopy

The challenge: Wavefront distortion and thermal instability in long-path optical systems.

The solution: A 300 mm OAP mirror made from Zerodur with a dielectric coating and <1/3λ surface accuracy provided stable beam steering for a THz spectroscopy setup, enabling precise data collection over fluctuating temperatures.

2. Astronomical Telescopes

The challenge: Central obstruction and stray light reduce image contrast in telescopic systems.

The solution: A 400 mm fused silica OAP mirror with a protected silver coating and a 30° off-axis angle minimized diffraction and enhanced deep-sky imaging. The result: clearer, higher-contrast astronomical observations.

3. Industrial Laser Systems

The challenge: Energy loss and alignment errors in high-power laser beam delivery.

The solution: A gold-coated, 1-inch OAP mirror with a 45° off-axis angle was used to focus intense laser beams with minimal loss. Constructed from 6061 aluminum, it performed reliably in high-vibration industrial environments.

Custom OAP Mirrors from Shanghai Optics

At Shanghai Optics, we specialize in manufacturing high-precision Off-Axis Parabolic Mirrors optimized for specific optical systems. Our solutions include:

• Custom focal lengths and off-axis angles

• Diamond-turned surfaces for ultra-smooth finish

• Coatings for UV, visible, IR, or broadband use

• SM-threaded, unthreaded, or post-mountable adapters


Contact Shanghai Optics today! We’d be more than happy to discuss your projects and how to best bring them to fruition.
