Advancing Optics: From Spherical to Aspheric Lenses

Advancing Optics: From Spherical to Aspheric Lenses

The transition from spherical to aspheric lenses marks a significant advancement in optical technology. While both types serve various applications, the unique surface shape of aspheric lenses offers distinct advantages, revolutionizing optical system design. Shanghai Optics, a leader in this field, specializes in producing high-quality aspheric lenses tailored for diverse optical needs.

  • Enhancing Optical Performance: Aspheric lenses, with their variable curvature, effectively correct optical aberrations such as spherical aberration, coma, astigmatism, and distortion. These aberrations, if unaddressed, lead to issues like large focused spot sizes and reduced image resolution. By optimizing the coefficients and curvature radius, aspheric lenses ensure sharper images and diffraction-limited resolution, a strategy integral to modern optical design.
  • Benefits of Aspheric Lenses: Compactness, reduced aberrations, sharper focusing, larger aperture size, and improved optical performance distinguish aspheric lenses. Their ability to focus light regardless of entry angle makes them ideal for compact optical systems, where size and weight reduction are paramount.
  • Streamlining Optical Designs: The superior aberration control of aspheric lenses allows for a streamlined optical assembly with fewer elements. This simplifies the assembly process, reduces system size and weight, and enhances light throughput by minimizing internal reflections.
  • Cost Reduction: Recent advancements in manufacturing techniques, particularly subaperture polishing, have significantly lowered the cost of producing high-quality aspheric lenses. While traditionally more expensive than spherical lenses, these developments make it economically feasible to replace multiple spherical elements with fewer aspheric lenses. The need for magneto-rheological finishing (MRF) is diminishing, further contributing to cost reduction and widespread adoption of aspheric lenses.

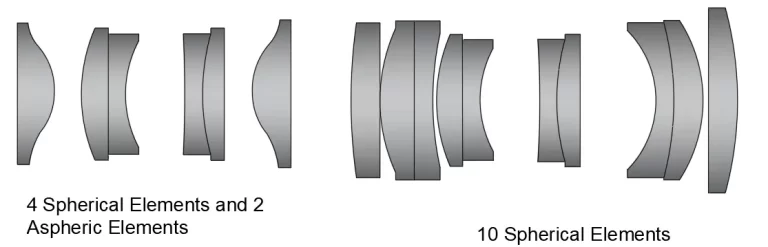

Figure 1: Despite appearing complex, a single aspheric lens can replace multiple spherical lenses in an optical assembly, resulting in a simpler, more compact, and lighter final system.


The adoption of aspheric lenses signifies a paradigm shift in optical system design, offering superior performance in a more compact and cost-effective form. Shanghai Optics stands at the forefront of this innovation, providing customized solutions for various optical needs.
