Micro Waveplate

Cylindrical Lenses
Aspheric Lenses
Achromatic Lenses
Spherical Lenses
Optical Prisms
Optical Mirrors
Beamsplitters
Optical Windows
Infrared Optics
Micro Optics
Optical Filters
Colored Glass Filters
Custom Shapes
Laser Optics
Freeform Optics
Fresnel Lenses
Light Pipe Homogenizing Rods
TIR Lens
Medical Device Optics

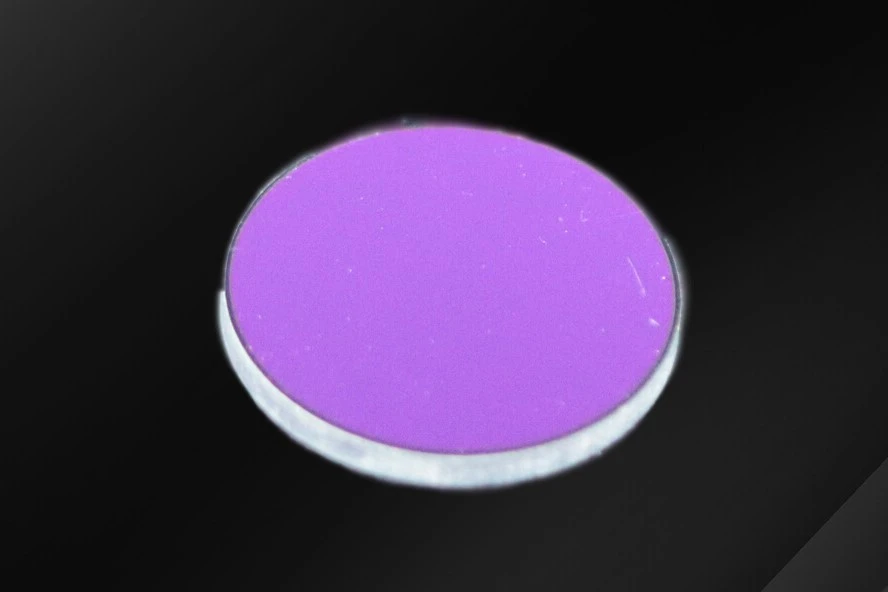

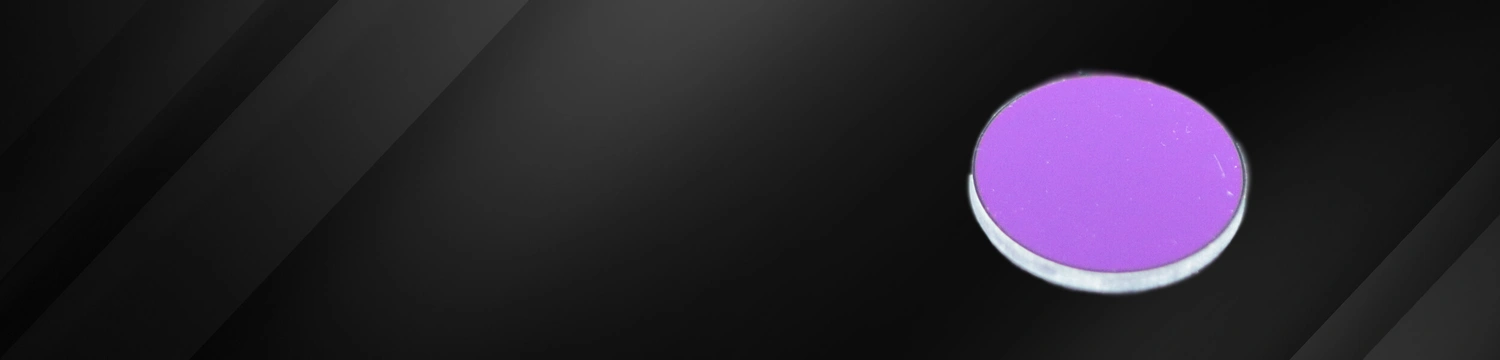

Shanghai Optics manufactures Half Wave Plates and Micro Waveplates. The Micro Waveplates are as small as 0.35mm x 0.35mm with a tolerance of +/-0.05mm and a thickness of about 0.19mm.

Factory Standard – Contact us for manufacturing limit or custom specifications.

  • Material: Crystal Quartz
  • Dimension: +0.05, -0.05mm
  • Wavefront Distortion: <l/8 l@632.8
  • Retardation tolerance: <l/500
  • Parallelism: <3 arc second
  • Surface Quality: 20/10 scratches and dig
  • AR coating: R<0.2% at central wavelength
  • Standard Wave: quarter-wave (l/4), half-wave (l/2)
