Laser Polarizing Beamsplitters Cube

Cylindrical Lenses
Aspheric Lenses
Achromatic Lenses
Spherical Lenses
Optical Prisms
Optical Mirrors
Beamsplitters
Optical Windows
Infrared Optics
Micro Optics
Optical Filters
Colored Glass Filters
Custom Shapes
Laser Optics
Freeform Optics
Fresnel Lenses
Light Pipe Homogenizing Rods
TIR Lens
Medical Device Optics

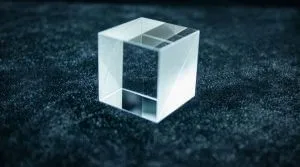

These are thin film Polarizers constructed as a cube. Thin film polarizers utilize the polarization which occurs on reflection from a plane surface. By combining a large number of such surfaces in a stack it is possible to obtain useful extinction ratios.
The s-polarization is more than 99% reflected while the p-polarization can be suppressed in the reflected beam and become 95% transmitted. Thin film Polarizers can be optimized for a particular wavelength to give superior performance for laser applications.

Factory Standard

  • Material: Schott, Ohara, CDGM glass, Corning fused silica, JGS1, JGS2
  • Surface flatness: l/4 Lambda
  • Dimensions: +0.1 mm
  • Beam deviation: 1 arcmin
  • Asymmetry: 1°
  • Surface quality: 40-20
  • Coating: Narrowband Anti-Reflection coating on faces
  • Extinction ratio: Ts<1×10-2    Rp<2×10-2
  • Damage threshold: <100mJ/cm2 in 10ns @1064nm

Contact us for manufacturing limit or custom specifications.

Laser Polarizing Beamsplitters Cube

Part Number Wavelength Range(nm) Laser Type Side, (mm)
442 HeCd 10
442 HeCd 15
442 HeCd 20
458 HeCd 10
458 HeCd 15
458 HeCd 20
488 Ar Ion 10
488 Ar Ion 12.7
488 Ar Ion 15
488 Ar Ion 20
514 Ar Ion 10
514 Ar Ion 12.7
514 Ar Ion 15
514 Ar Ion 20
532 YAG 2nd 10
532 YAG 2nd 12.7
532 YAG 2nd 15
532 YAG 2nd 20
632.8 HeNe 5
632.8 HeNe 10
632.8 HeNe 12.7
632.8 HeNe 15
632.8 HeNe 20
670 Diode 5
670 Diode 10
670 Diode 12.7
670 Diode 15
670 Diode 20
780 Diode 5
780 Diode 10
780 Diode 12.7
780 Diode 15
780 Diode 20
830 Diode 5
830 Diode 10
830 Diode 12.7
830 Diode 15
830 Diode 20
1064 YAG 5
1064 YAG 10
1064 YAG 12.7
1064 YAG 15
1064 YAG 20
1300 Diode 5
1300 Diode 10
1300 Diode 12.7
1300 Diode 15
1300 Diode 20
1321-1343 Diode 5
1321-1343 Diode 10
1321-1343 Diode 12.7
1321-1343 Diode 15
1321-1343 Diode 20
1550 Diode 5
1550 Diode 10
1550 Diode 12.7
1550 Diode 15
1550 Diode 20
