Laser Line Non-Polarizing Plate Beamsplitter

Cylindrical Lenses
Aspheric Lenses
Achromatic Lenses
Spherical Lenses
Optical Prisms
Optical Mirrors
Beamsplitters
Optical Windows
Infrared Optics
Micro Optics
Optical Filters
Colored Glass Filters
Custom Shapes
Laser Optics
Freeform Optics
Fresnel Lenses
Light Pipe Homogenizing Rods
TIR Lens
Medical Device Optics



Shanghai Optics specializes in designing and manufacturing custom beamsplitter from prototyping to volume production.

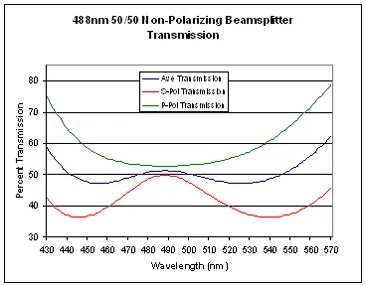

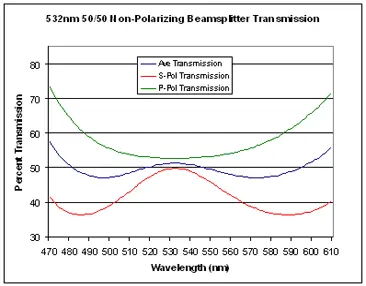

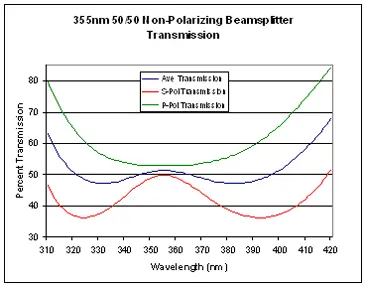

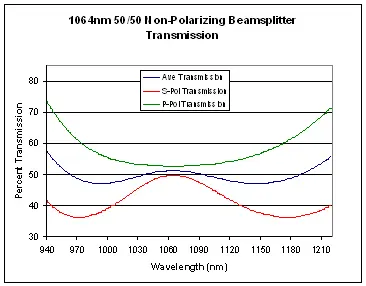

Our Laser Line Plate Beamsplitters feature a 50R/50T ratio and are insensitive to input beam polarization. Available in 12.5mm and 25mm diameters as well as 50mm square, the Beamsplitters feature high damage thresholds and can be easily integrated into a variety of laser applications. The Beamsplitter coating is completed by a high efficiency AR V-coating for enhanced performance. A precision excimer grade UV grade fused silica substrate, featuring a 10-5 surface quality and 5 arc second parallelism, provides excellent thermal stability, low wavefront distortion, and ultra-low auto-fluorescence.12.5mm and 25mm uncoated substrates are available as well.
Please contact us for 5 arc sec wedged versions of these Beamsplitters.

Factory Standard

  • Material: UV Grade Fused Silica, JGS1, JGS2
  • Dimensions: +0.00 / -0.10mm
  • Surface Quality: 10-5
  • Clear Aperture: 80%
  • Parallelism: 5 arc sec

Contact us for manufacturing limit or custom specifications.
