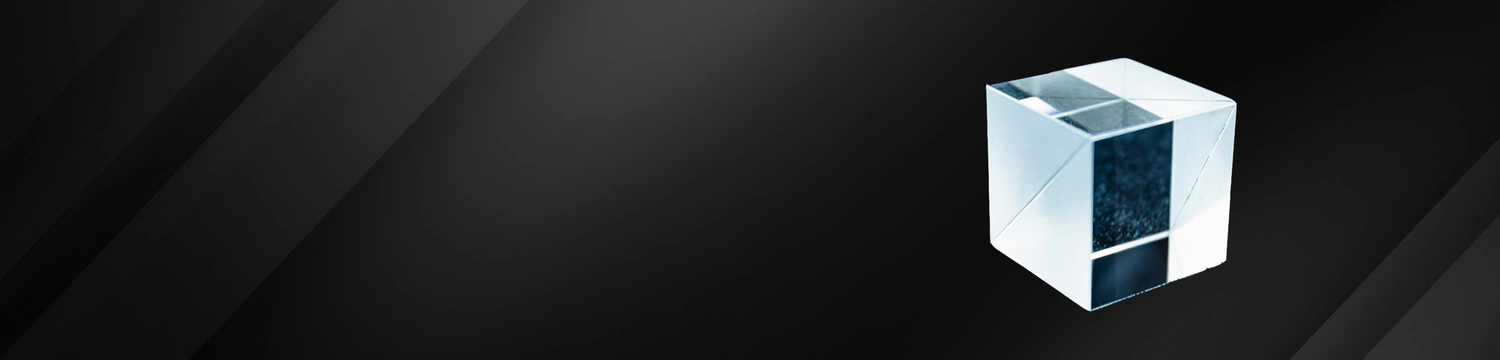

Broadband Non-Polarizing Beamsplitter Cube

Cylindrical Lenses
Aspheric Lenses
Achromatic Lenses
Spherical Lenses
Optical Prisms
Optical Mirrors
Beamsplitters
Optical Windows
Infrared Optics
Micro Optics
Optical Filters
Colored Glass Filters
Custom Shapes
Laser Optics
Freeform Optics
Fresnel Lenses
Light Pipe Homogenizing Rods
TIR Lens
Medical Device Optics

Shanghai Optics is one of the leading optical component suppliers that offers Non-Polarizing Beamsplitters for the Visible (400-700nm), NIR (700-1100nm), and Telecom (1100-1620nm) ranges. The low polarization dependence of the metallic/dielectric hybrid coating allows the transmission and reflection for S- and P-polarization states to be within 6% of each other.

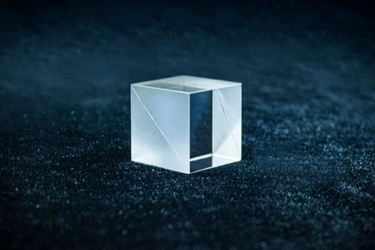

These Beamsplitters are spectrally flat across their specified wavelength ranges, making them ideal for use with a variety of laser wavelengths. The spectral flatness also reduces effects that are due to changes in the angle of incidence or converging/diverging beams. Each Beamsplitter consists of a pair of precision high tolerance Right Angle Prisms cemented together with a metallic dielectric coating on the hypotenuse of one of the Prisms. A broadband antireflective (BBAR) coating has been applied to each face of the Beamsplitter in order to produce maximum transmission efficiency for the appropriate wavelength range.

Factory Standard

  • Material: Schott, Ohara, CDGM Optical Glass, Corning fused silica, JGS1, JGS2
  • Dimension Tolerance: +/- 0.2mm
  • Flatness: l/4 @ 632.8 nm
  • Surface Quality: 60/40 scratch and dig
  • T/R: 50/50+/- 5%   T=(Ts+Tp)/2, R=(Rs+Rp)/2
  • Beam Deviation: <3 arc minutes
  • Coatings: Broadband partial reflectance: on hypotenuse face
  • BBAR-coatings: on all input and output face

Contact us for manufacturing limit or custom specifications.
