Exploring Advanced Optics for LiDAR Technology

In recent years, LiDAR technology has experienced remarkable advancements, revolutionizing various industries with its precise sensing capabilities. From mapping terrain to enabling autonomous vehicles, LiDAR systems rely heavily on sophisticated optics tailored to specific applications.

LiDAR, an acronym for Light Detection and Ranging, operates similarly to radar but uses laser pulses instead of radio waves. These pulses are directed towards objects or surfaces, and the system calculates the precise distance based on the time it takes for the pulses to return. This fundamental principle allows LiDAR to create detailed 3D models and accurate topographical maps.


Custom Optics for Enhanced Performance

The versatility of LiDAR systems lies in their ability to adapt to different environments and tasks, which necessitates the use of custom optics. Optimal performance is achieved by selecting lasers in the UV, visible, or near-infrared (NIR) spectrum depending on the specific requirements of the application. For instance, military applications often prefer Er-doped fiber 1550 nm lasers for their safety and effectiveness with night vision goggles.

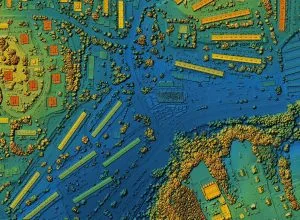

LiDAR mapping: Aerial drone photos processed into GIS 3D illustration of urban area, highlighting roads, junctions, and dense infrastructure.


Specialized Applications and Laser Selection

In underwater scenarios, such as bathymetry, lasers with excellent water transmission and minimal backscattering are essential. For these tasks, 534 nm frequency-doubled diode-pumped YA lasers are recommended. On the other hand, airborne LiDAR systems benefit from 1064 nm diode-pumped YAG lasers, ideal for mapping expansive terrains with high precision.


Critical Laser Parameters and Considerations

Key factors such as pulse repetition rate, power consumption, and beam divergence significantly impact the performance and efficiency of LiDAR systems. The choice between flash LiDAR, which illuminates the entire field of view simultaneously, and scanning LiDAR, which systematically covers points of interest, depends on the specific application requirements.


Enhancing Performance with Bandpass Filters

To mitigate challenges like solar background noise in long-range airborne LiDAR operations, narrow bandpass filters are employed. These filters, equipped with robust multilayer thin film coatings, ensure optimal signal-to-noise ratios by precisely matching the laser wavelengths, even in harsh environmental conditions.

Shanghai Optics specializes in delivering tailored optics solutions designed to meet the exact specifications of LiDAR applications. Our commitment to innovation and precision ensures that each system optimally performs in its intended environment, surpassing the limitations of off-the-shelf solutions. Contact our experts today to explore how we can customize a LiDAR solution to elevate your project to new heights.

As LiDAR technology continues to evolve, the role of advanced optics becomes increasingly crucial in maximizing its capabilities across diverse applications. By leveraging custom optics and specialized laser technologies, industries can unlock new possibilities in mapping, navigation, and environmental monitoring, paving the way for safer and more efficient operations.

Contact Shanghai Optics today! We’d be more than happy to discuss your projects and how to best bring them to fruition.
