Beamsplitters are optical components designed to divide or combine light beams within an optical system. They are widely used in interferometry, microscopy, laser systems, imaging devices, quantum optics, and semiconductor inspection. Depending on the application, engineers can select from cube beamsplitters, plate beamsplitters, polarizing beamsplitters, and non-polarizing beamsplitters. Understanding how a beamsplitter works is critical when designing optical systems that require precise control of reflected and transmitted light.
What Is a Beamsplitter?
A beamsplitter is a type of optical device that splits an incident light beam into two. These tools can split both laser and regular light. It is also important to note that a beamsplitter can combine two incoming beams from distinct angles into a single output.
A beamsplitter operates by partially reflecting and partially transmitting incoming light. The ratio between reflected and transmitted light can vary depending on the coating design and application requirements. Common reflection/transmission (R/T) ratios include:
- 50/50 Beam Splitter
- 70/30 Beam Splitter
- 90/10 Beam Splitter
- Custom R/T Ratios
Modern optical beamsplitters are manufactured using precision coatings that control wavelength performance, polarization behavior, and laser damage thresholds.

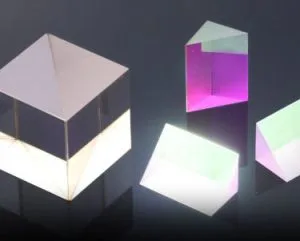

Types of Beamsplitters
Plate Beamsplitters
Plate beamsplitters consist of a thin optical substrate coated with a partially reflective dielectric layer. Unlike cube beam splitters, they do not require optical cement, making them suitable for higher-power laser applications.
Advantages include:
- Lower cost
- Higher laser damage resistance
- Larger available aperture sizes
- Reduced manufacturing complexity
Potential limitations include:
- Ghost reflections
- Unequal optical path lengths
- Increased alignment sensitivity
Plate beamsplitters are commonly found in laser processing systems, spectroscopy instruments, and scientific research applications.

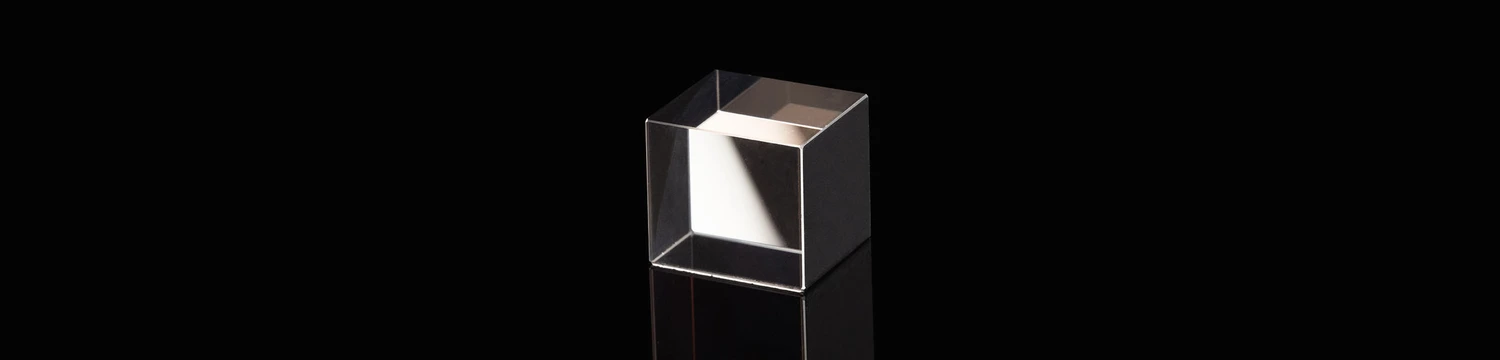

Cube Beamsplitters
Cube beamsplitters are manufactured by cementing two precision prisms together with a partially reflective coating positioned at the interface. The optical design allows incoming light to be split into reflected and transmitted beams while maintaining excellent alignment stability.
Advantages of cube beamsplitters include:
- Minimal ghost reflections
- Compact optical path
- High mechanical stability
- Equal optical path lengths
Cube beamsplitters are commonly used in:
- Interferometers
- Fluorescence microscopy
- Machine vision systems
- Precision metrology
However, cube beamsplitters may have lower laser damage thresholds due to the optical cement layer and are typically more expensive than plate beamsplitters.
Polka-Dot Beamsplitters
These are beamsplitters with a polka-dot-like surface. Half of the beamsplitter’s surface consists of dots, which reflect materials created using photolithography or mechanical masking (with any desired ratio). This provides them with an almost continuous R/T ratio independent of the viewing angle.
Polarizing vs Non-Polarizing Beamsplitters
Polarizing beamsplitters (PBS) separate incoming light according to polarization state. Typically, s-polarized light is reflected while p-polarized light is transmitted.
These beamsplitters are commonly used in:
- Laser systems
- Optical communication
- Quantum optics
- Polarization analysis
Non-polarizing beamsplitters (NPBS) are designed to maintain nearly equal reflection and transmission ratios regardless of polarization state. They are widely used in imaging systems, microscopy, and interferometry where polarization sensitivity is undesirable.
Cube vs Plate Beamsplitters: Which Should You Choose?
Feature | Cube Beamsplitter | Plate Beamsplitter |
Cost | Higher | Lower |
Ghost Reflections | Minimal | More Common |
Optical Path Length | Equal | Unequal |
Laser Resistance | Moderate | Higher |
Alignment Stability | Excellent | Moderate |
Large Apertures | Limited | Excellent |
Cube beamsplitters are generally preferred for precision optical systems, while plate beamsplitters are often selected for high-power laser applications.
How Does a Beamsplitter Work?
A beamsplitter works by dividing incident light into reflected and transmitted components. This process is controlled by optical coatings deposited on the beam splitter surface.
When light reaches the coated surface:
- A portion of the light is reflected.
- The remaining portion is transmitted.
- The reflection/transmission ratio depends on coating design.
Several factors influence beamsplitter performance:
- Wavelength: Optical coatings are optimized for specific wavelength ranges. Performance may vary outside the design wavelength.
- Angle of Incidence: Most beam splitters are designed for operation at 45° incidence. Changes in angle can affect splitting ratios.
- Polarization: Polarized light may experience different reflection and transmission characteristics depending on coating design.
- Surface Quality: High-quality optical surfaces minimize scattering and improve overall system performance.
How to Select the Right BeamSplitter
Selecting the correct beamsplitter depends on several optical and environmental factors.
Consider the following:
- Wavelength Range: Verify compatibility with UV, visible, NIR, or SWIR wavelengths.
- Laser Power: High-power laser systems often benefit from plate beamsplitters due to their higher laser damage thresholds.
- Polarization Requirements: Choose polarizing beamsplitters when polarization separation is required.
- Reflection/Transmission Ratio: Select ratios such as 50/50, 70/30, or 90/10 based on system requirements.
- Optical Path Requirements: Applications requiring equal optical path lengths may benefit from cube beamsplitters.
Common Applications of Beamsplitters
Beamsplitters are used to separate or combine two sources of light with precise R/T ratios. This quality of theirs makes them perfect for use in many technological contexts, such as semiconductors, sensors, lasers, and cameras. Here are some of the common applications of beamsplitters.
- Heads-Up Displays (HUDs): Beamsplitters are frequently used in head-up displays. Projected onto a surface, these images are see-through. Common head-up displays use a beamsplitter in conjunction with projection and lens systems to project an image onto the exterior of a moving vehicle via laser.
- Interferometry: Beamsplitters are fundamental components in Michelson and Mach-Zehnder interferometers. They divide light into multiple paths and enable interference measurements used in precision metrology.
- Laser Systems: Laser beamsplitters distribute optical power between multiple beam paths for monitoring, measurement, and material processing applications.
- Microscopy: Fluorescence microscopes and confocal microscopes utilize beam splitters to separate excitation and emission light paths.
- Quantum Optics: Beamsplitters play a critical role in quantum optics experiments involving photon interference, entanglement, and quantum information processing.
- Semiconductor Inspection: High-precision optical beam splitters are widely used in wafer inspection and semiconductor metrology systems.
Conclusion
A beamsplitter is a device that can divide or combine light depending on its purpose. The equipment works by dividing the incoming light into one to two beams, one or more of which are transmitted through the optical element and one or more of which are directed at an angle away from the optical element. Ultimately, it is a tool that is essential in many devices, such as lasers, heads-up displays, and others.
Frequently Asked Questions
What is a beamsplitter used for?
Beamsplitters are used to divide or combine light beams in optical systems such as lasers, microscopes, interferometers, and imaging devices.
What is the difference between a cube beamsplitter and a plate beamsplitter?
Cube beamsplitters offer better alignment stability and lower ghost reflections, while plate beamsplitters provide higher laser resistance and lower cost.
What is a 50/50 beamsplitter?
A 50/50 beamsplitter reflects approximately 50% of incoming light while transmitting the remaining 50%.
Can beamsplitters be used with lasers?
Yes. Beamsplitters are commonly used in laser systems for beam monitoring, power distribution, and optical routing.
What is a polarizing beamsplitter?
A polarizing beamsplitter separates light according to polarization state, transmitting one polarization while reflecting the other.
