Innovations in Spectrometer Optics and Design

A spectrometer, a cornerstone of optical analysis, comprises multiple components that meticulously dissect light, offering a spectrum of its constituent wavelengths and intensities. These instruments find extensive utility across various disciplines, from probing distant cosmic phenomena to scrutinizing molecular structures in biochemical studies. Shanghai Optics, renowned for its adept engineering team, excels in crafting optical components for spectrometers tailored to diverse research, industrial, medical, and defense applications.



Core Principles of Spectrometer Design

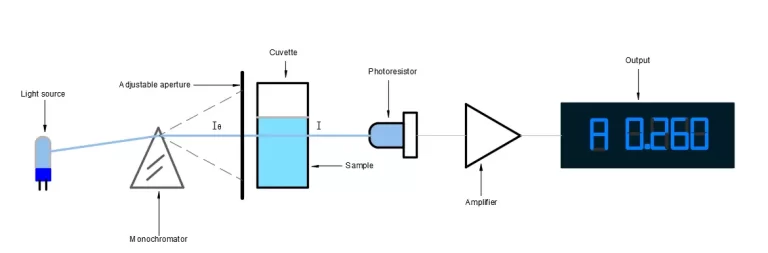

The fundamental architecture of an optical spectrometer encompasses an entrance slit, a diffraction grating or prism, and a detector, all interconnected by routing optics. Filters are employed to mitigate noise in spectrometers with broad spectral coverage. This system dissects incident light, generating spectra while the detector quantifies light intensity across wavelengths.

Each spectrometer component undergoes meticulous engineering to minimize aberrations, control stray light, and achieve optimal resolution. Various applications demand specific balances between sensitivity and resolution, leading to diverse spectrometer designs. Notable configurations include Echelle, Czerny-Turner, Littrow, Ebert-Fastie, and concave aberration-corrected holographic gratings. The selection depends on intended applications and wavelength ranges, such as UV, visible, or NIR regions. Among these, the Czerny-Turner design, celebrated for its asymmetry, offers engineers flexibility in optimization for specific tasks.



Exploring the Czerny-Turner Spectrometer

The Czerny-Turner design, characterized by two toroidal mirrors, stands out for its robustness and adaptability. Light entering through an entrance slit is collimated by the first mirror, directed to the diffraction grating, and focused onto the detector by the second mirror. Grating rotation alters the wavelength range on the detector, offering adjustable resolution. This design’s asymmetry enables engineers to optimize performance for diverse applications, particularly in mitigating optical aberrations and enhancing coma correction.



Selecting Spectrometer Specifications

Spectrometer performance hinges on various specifications like wavelength range, optical resolution, slit size, sensitivity, speed, and detector type. Grating size is chosen based on the desired spectral coverage, with finer gratings offering superior resolution but limited flexibility. Slit size affects resolution and sensitivity trade-offs. Sensitivity relies on high-throughput detectors, crucial for applications like fluorescence spectroscopy. Spectrometer speed varies with configuration and detector type, with linear arrays offering faster performance.



Component Insights Entrance Slit

Width determines the balance between sensitivity and resolution. Adjustable slit widths cater to different applications. Diffraction Grating or Prism: Different grating types offer varied performance trade-offs. Rotation and selection of gratings allow flexibility in spectral coverage. Detector: Charged-coupled devices (CCDs) are favored for their high dynamic range and uniform response. Cooling reduces noise. Routing Optics: Curved mirrors are preferred over lenses for reduced aberrations. Various configurations offer advantages in minimizing stray light and size. Higher Order Filters: Necessary to block unwanted higher-order light for spectrometers spanning multiple diffraction orders.

Shanghai Optics’s over 60 years of experience and state-of-the-art metrology ensure precision in manufacturing high-performance spectrometers. With a vast inventory of components, they promptly assemble diverse spectrometer configurations. Custom solutions are also available to cater to specific requirements. Shanghai Optics remains committed to excellence in spectrometer optics and design, ready to collaborate on cutting-edge projects.

Do not hesitate to contact Shanghai Optics today. We’d be more than happy to discuss your projects and how best they can become a success.
