The Efficiency and Applications of Fresnel Lenses

Fresnel lenses, named after physicist Augustin Jean Fresnel, are unique optical devices consisting of concentric grooves etched into plastic or glass. Despite trade-offs in imaging quality, their thin and lightweight design, along with versatile applications, makes them noteworthy in various fields.


Fresnel Lens Basics and Applications

Fresnel lenses, characterized by their concentric grooves, find applications in computer-controlled systems, traffic lights, and scenarios requiring light beam manipulation. These lenses play a crucial role in light-gathering applications, including condenser systems, emitter/detector setups, magnifiers, and projection lenses.

The design advantage of Fresnel lenses lies in their division into concentric annular sections. This allows for the creation of lenses with large apertures and short focal lengths, minimizing material usage compared to conventional lenses. Whether made of plastic or glass, some Fresnel lenses can even take the form of a flat sheet, especially in the case of plastic construction.


Imaging Trade-off and Focusing Ability

While Fresnel lenses share the curvature of traditional lenses, their engraved grooves result in a trade-off between reduced thickness, mass, and imaging quality. The ability to focus light becomes challenging, and curvature accuracy may vary. However, for applications where precise imaging is not paramount, the thin profile and lightweight construction of Fresnel lenses make them a suitable choice.

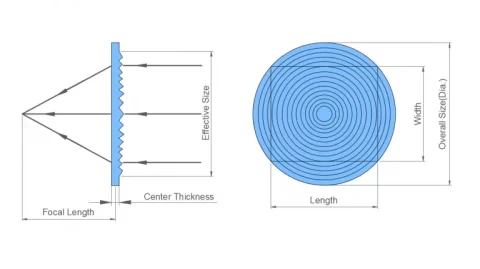

Frensel Lens

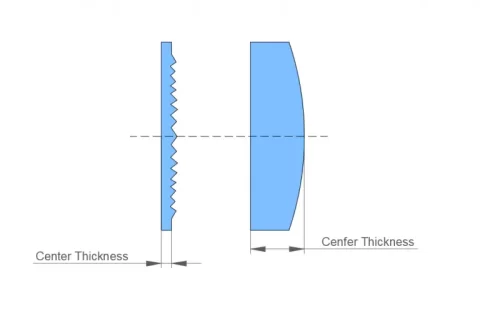

Thickness of Lenses


Advantages of Fresnel Lenses

Fresnel lenses, crafted from plastic or glass, offer distinct advantages, including thin and lightweight construction, availability in various sizes, and excellent light-gathering ability. Their ability to focus light similar to traditional optical lenses makes them beneficial in smaller-scale applications compared to many conventional lenses.

In conclusion, Fresnel lenses showcase notable efficiency in specific applications, such as traffic lights and computer-controlled systems, due to their innovative design and optical capabilities. While trade-offs exist in imaging quality, their unique construction allows for versatility in various optical applications.

At Shanghai Optics, we specialize in creating custom optics, including plastic and glass Fresnel lenses, for clients in fields ranging from medicine and defense to research and industry. Do not hesitate to contact Shanghai Optics today. We’d be more than happy to discuss your projects and how best they can become a success.
