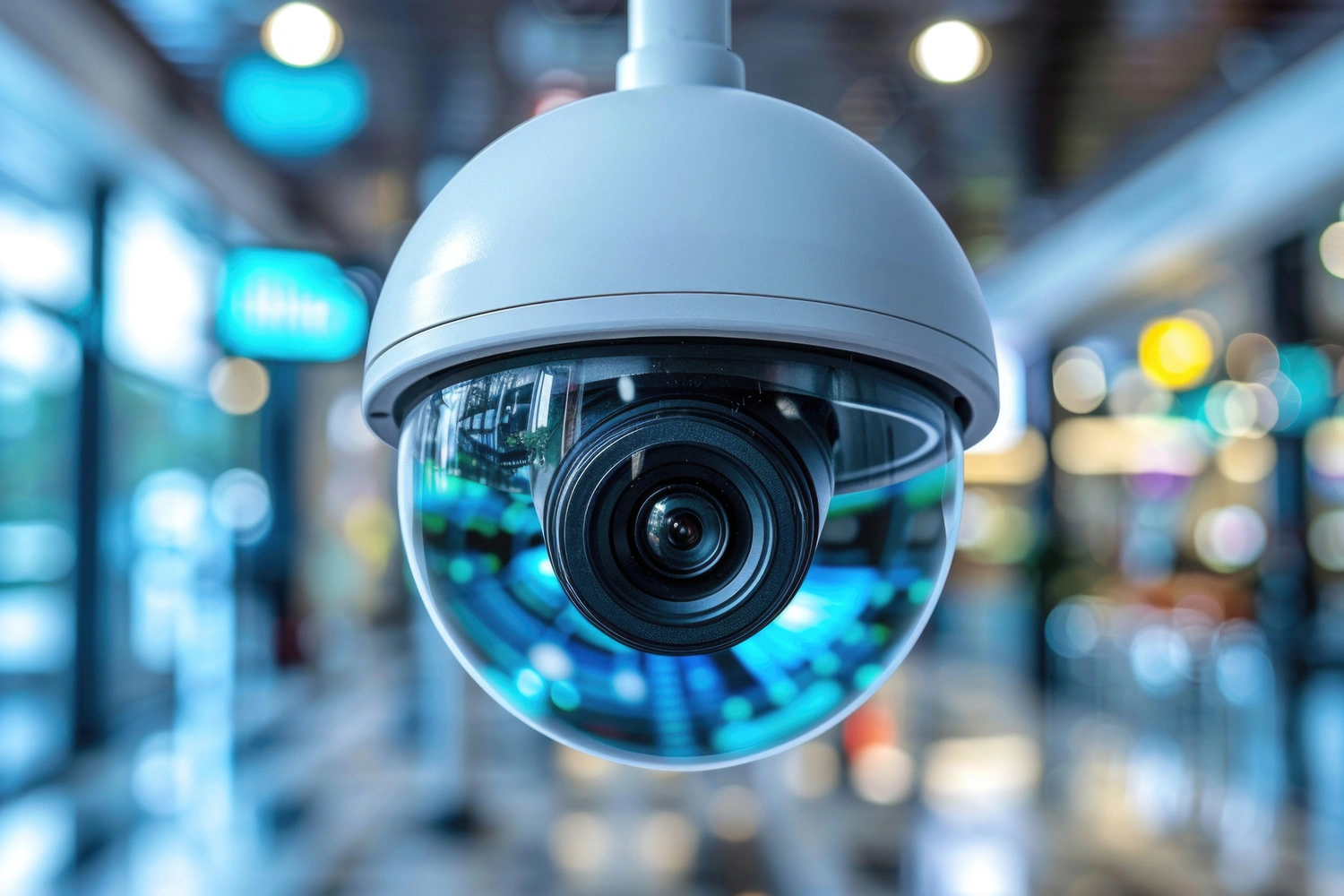

Choosing Flanged Optical Domes for Camera Systems

Flanged optical domes are critical components in camera systems, offering superior optical clarity with near-zero wavefront error. These advanced domes address common optical issues and ensure reliable performance in various environments. This guide provides a comprehensive overview of the factors to consider when selecting the ideal flanged optical dome for your application.


Key Benefits of Flanged Optical Domes

  • Exceptional Optical Performance: Flanged domes provide near-zero wavefront error, ensuring high clarity and precision.
  • Resolution of Common Optical Issues: High-quality flanged domes reduce distortion, speckle, haziness, and transmission loss.
  • Durability and Adaptability: Designed to withstand extreme pressures and environmental challenges, these domes enhance the resilience and longevity of camera systems.


Addressing Common Optical Issues

Optical Distortion

  • Overall Distortion: Often caused by poor design, varying wall thickness, and material inconsistencies, overall distortion significantly impacts camera system performance.
  • Localized Distortion & Speckle: Mold marks, bubbles, pits, and scratches result in localized optical issues.

Transmission and Clarity

  • Haziness: Resulting from micro-surface abrasion, devitrification, and low-quality materials, haziness can degrade image quality.
  • Reduced Transmission: Inferior materials can cause signal attenuation, reducing the system’s transmission efficiency.

Color and Reflection Issues

  • Color Shift & Chromatic Aberration: Non-neutral materials and color dispersion lead to color shifts and aberrations.
  • Fresnel Reflections (Fresnel Losses): Surface reflections can reduce transmission and create multiple images, but anti-reflective coatings and good design can mitigate these effects.

Mounting Challenges

  • Secure Mounting: Poor flange mounting designs can risk equipment damage. Reliable mounting ensures the dome is securely attached and sealed against environmental hazards.


Ensuring Long-Term Reliability

  • Radiation Degradation: Prolonged exposure to sunlight and intense lighting can yellow and solarize dome materials.
  • Thermal Failure & Degradation: Excessive heat can make plastic domes brittle and cause glass domes to crack or suffer thermal shock.
  • Mechanical Stresses: Impacts, explosions, and environmental hazards can compromise dome performance.
  • Flange Seal Integrity: The strength and durability of the seal between the dome and the flange are vital for maintaining long-term reliability.


Selecting the Optimal Glass Dome

  • Application Requirements: Thoroughly assess your application needs to avoid over-specification, which can lead to unnecessary costs.
  • Imaging System Performance: Ensure the dome meets the performance requirements without exceeding them to maintain cost efficiency.
  • Manufacturing Methods:
  • Ground and Polished Domes: Offer high precision but are expensive and time-consuming to produce.
  • Molded Glass Domes: Press-molded domes may have marks and distortion, suitable for non-optical applications. Slump-molded domes offer superior surface quality at a lower cost.
  • Material Selection: The choice of material impacts optical performance and durability. High-quality glass provides the best balance of durability and clarity, while plastic is less durable and more prone to degradation.
  • Flange Material and Sealing: Select flange materials based on environmental factors like temperature, pressure, chemical exposure, and radiation. Proper sealing processes are crucial for optimal performance and cost-effectiveness.

Choosing the right flanged optical dome for your camera system involves balancing performance and cost. Understanding your specific requirements, along with the implications of manufacturing methods and material choices, is essential. Shanghai Optics excels in providing high-quality flanged optical glass domes, utilizing premium materials and innovative manufacturing processes to ensure outstanding optical integrity and long-term reliability. By prioritizing these considerations, you can confidently select the best dome solution for your imaging needs.
