Optical beamsplitters are fundamental components used to divide, combine, or redirect light within imaging, spectroscopy, laser, interferometry, and photonics systems. By controlling the propagation of optical signals, beamsplitters enable precise light management in applications ranging from semiconductor inspection and fluorescence microscopy to LiDAR and quantum optics.
This guide explores the operating principles, performance considerations, and selection criteria of cube, plate, polarizing, non-polarizing, and dichroic beamsplitters, helping engineers identify the most suitable solution for demanding optical applications.
What Is a Beamsplitter
A beamsplitter is a passive optical component designed to divide, combine, or redirect optical power within an optical system. Depending on its coating architecture and substrate design, a beam splitter may separate light according to intensity, wavelength, or polarization state.
Modern optical beam splitters are used throughout imaging, spectroscopy, semiconductor inspection, laser processing, quantum optics, and metrology systems where precise control of optical paths is critical. While a 50/50 reflection/transmission ratio is common, beam splitters are available in a wide range of custom ratios and spectral configurations optimized for specific performance requirements.
Beam splitter technologies can be categorized according to their construction and optical behavior, including cube beamsplitters, plate beamsplitters, polarizing beamsplitters, non-polarizing beamsplitters, and dichroic beamsplitters.
Optical Beam Splitter Applications
Beam splitters are widely used in advanced optical systems where precise light management is required.
Interferometry & Metrology
Beam splitters enable optical path division in Michelson and Mach-Zehnder interferometers, supporting precision measurement, surface profiling, and wavefront analysis.
Semiconductor Inspection
Optical inspection systems utilize beam splitters to direct illumination and imaging paths for defect detection, wafer metrology, and process control.
Fluorescence Microscopy
Dichroic and non-polarizing beam splitters separate excitation and emission wavelengths, improving signal collection efficiency and image quality.
Laser Systems
Beam splitters are used for laser power monitoring, beam delivery, wavelength combining, and optical isolation in industrial and scientific laser systems.
Machine Vision & Imaging
High-performance beam splitters support image acquisition, multispectral imaging, and optical alignment in machine vision applications.
Quantum Optics & Photonics
Beam splitters are critical components in photon interference experiments, quantum communication systems, and integrated photonic platforms.
LiDAR & Optical Sensing
Advanced beam splitter coatings enable efficient light routing and wavelength management in autonomous sensing and remote measurement systems.
Optical Performance Considerations
Selecting a beamsplitter requires evaluating several critical optical parameters.
Reflection/Transmission Ratio (R/T)
Common ratios include 50/50, 70/30, and 90/10. The optimal ratio depends on detector sensitivity, optical power distribution, and system architecture.
Polarization Sensitivity
Certain beamsplitters exhibit different transmission and reflection characteristics for s- and p-polarized light. Polarization effects must be considered in imaging, spectroscopy, and laser applications.
Laser Damage Threshold
High-power laser systems often require specialized dielectric coatings and substrates capable of withstanding elevated optical intensities.
Wavefront Distortion
Precision imaging and interferometry applications require minimal transmitted wavefront error to maintain optical performance.
Spectral Range
Beamsplitter coatings are optimized for specific wavelength bands including UV, VIS, NIR, and SWIR applications.
Common Types of Beam Splitters
Beamsplitters are categorized based on their properties. For example, cube vs plate, polarized vs non-polarized, and dielectric vs mirror. Let us further discuss these categories in detail and their applications.

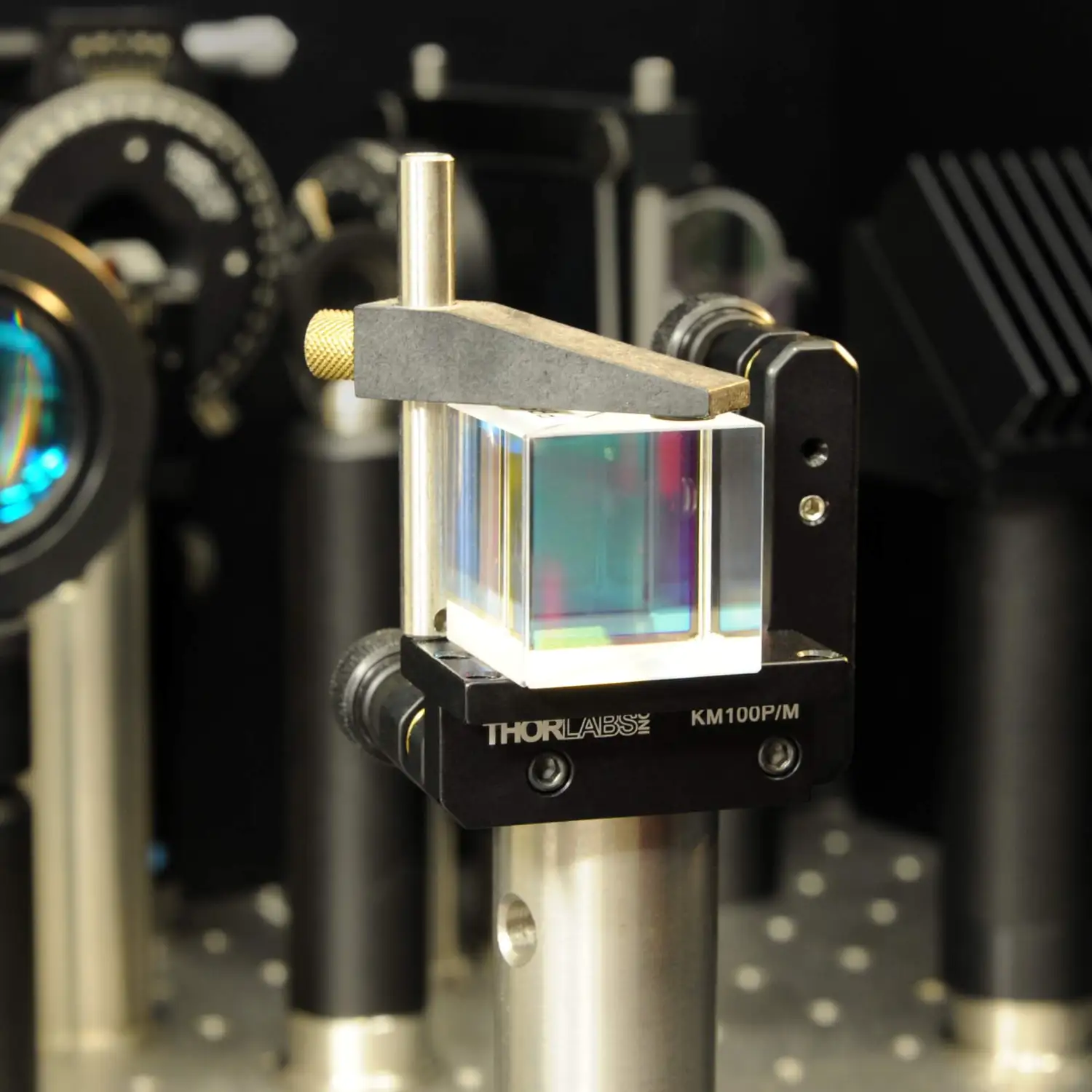

A Cube Beam Splitter
One of the most common categories is the cube beam splitter. It is composed of two triangular right-angle prisms cemented together at the hypotenuse to form a cube. The thickness of the optical glue used to bind the two glasses together is determined by the beam splitter’s purpose.
One of the prism’s inner surfaces is coated with a dielectric film that reflects at a 90° angle the half of the incident light that passes through. The other half is transmitted at 0° straight to the other side, meaning there is no beam shift and thus shortening the optical path of a system. Both the reflected and the transmitted beams are of the same length.
One of the disadvantages of this system is its construction and cost. The components are made of solid blocks of glass, which are both heavy and expensive to produce. On the other hand, its solid structure ensures a more durable device that only requires a simple mounting system.
Engineering Considerations for Cube Beam Splitters
When selecting a cube beam splitter, engineers should evaluate:
- Wavefront distortion
- Polarization sensitivity
- Angular deviation tolerance
- Coating wavelength range
- Environmental durability
Cube beam splitters are commonly selected for interferometry, microscopy, and machine vision systems where optical path symmetry and alignment stability are critical.
A Plate Beam Splitter
Another common category is the plate beam splitter. It is a thin, flat glass with a coating on one side facing the incident beam. The coating will determine the ratio at which the incident beam of light is divided. These are usually used for a 45° setup but may need some time to adjust. Unlike a cube beam splitter, a plate beam splitter will produce different lengths of the reflected and the transmitted beams.
The advantages of plate beam splitters are their low production cost and their lighter construction. These are thin pieces of glass that are less expensive and also lighter in comparison to cube beam splitters. However, as it is thin and more fragile than a cube, it will require a more secure and substantial mounting system.
Engineering Considerations for Plate Beam Splitters
Plate beam splitters are preferred when:
- Large clear apertures are required
- High laser damage thresholds are needed
- Cost-sensitive designs are prioritized
- Optical path asymmetry can be tolerated
For high-power laser applications, plate beam splitters often outperform cube beam splitters due to the absence of optical cement.
Cube Beam Splitter vs Plate Beam Splitter
Feature | Cube Beam Splitter | Plate Beam Splitter |
|---|---|---|
Cost | Higher | Lower |
Optical Path Length | Equal | Unequal |
Ghost Reflections | Minimal | Higher |
Laser Damage Threshold | Moderate | Higher |
Alignment Stability | Excellent | Moderate |
Large Apertures | Limited | Excellent |
Cube beam splitters are generally preferred for precision optical systems, while plate beam splitters are often selected for high-power laser applications and cost-sensitive designs.
What Is a Dichroic Beam Splitter
A dichroic beam splitter is a wavelength-selective optical component that separates light based on spectral content rather than intensity. Using multilayer dielectric coatings, dichroic beam splitters reflect selected wavelength bands while transmitting others with minimal optical loss.
Applications include:
Fluorescence microscopy
Flow cytometry
Biomedical imaging
Multispectral imaging
Laser wavelength combining
Projection systems
Engineers selecting dichroic beam splitters should evaluate cut-on wavelength, cut-off wavelength, polarization dependence, angle-of-incidence sensitivity, and laser damage threshold.
Polarizing Beam Splitters
Polarizing beam splitters separate incoming light according to polarization state. Typically, s-polarized light is reflected while p-polarized light is transmitted.
Applications include:
- Laser cavities
- Optical communication
- Quantum optics
- Polarization imaging
- Optical instrumentation
Because of their ability to efficiently manage polarized light, polarizing beam splitters are widely used in advanced photonics systems.
How Non-Polarizing Beam Splitters Work
Non-polarizing beam splitters (NPBS) divide incident light while maintaining nearly equal reflection and transmission characteristics for both s- and p-polarized light. Using specialized dielectric coatings, they minimize polarization-dependent effects and provide consistent optical performance across a defined wavelength range.
Non-polarizing beam splitters are commonly used in interferometry, microscopy, spectroscopy, machine vision, and laser systems where polarization-independent operation is required.
Other Types of Beamsplitters
While cube, plate, polarizing, and dichroic beam splitters are the most widely used designs, several specialized beam splitter architectures are available for specific optical applications.
Lateral Displacement Beam Splitters
Lateral displacement beam splitters generate two parallel output beams with a fixed spatial separation. These components are typically constructed using precision prism assemblies and dielectric coatings optimized for high transmission and low wavefront distortion.
Key advantages include:
- Parallel beam propagation
- High optical efficiency
- Excellent beam alignment stability
- Minimal polarization sensitivity (for non-polarizing designs)
Common applications include laser beam combining, interferometry, metrology, and optical alignment systems.
Transmission Grating Beam Splitters
Transmission grating beam splitters utilize diffraction gratings to separate incident light into multiple wavelength-dependent paths. Unlike conventional beam splitters that divide optical power, transmission grating beam splitters provide simultaneous beam splitting and spectral dispersion.
Key advantages include:
- Wavelength separation capability
- High spectral resolution
- Compact optical integration
- Efficient multiplexing of optical signals
These components are commonly used in spectroscopy, fluorescence microscopy, hyperspectral imaging, optical communications, and astronomical instrumentation.
Perforated (Polka-Dot) Beam Splitters
Perforated beam splitters utilize patterned reflective coatings deposited on a transparent substrate. The reflective regions redirect a portion of the incident light while the uncoated regions transmit the remaining optical power.
Typical characteristics include:
- Fixed reflection/transmission ratios
- Broadband wavelength operation
- Low cost compared to dielectric beam splitters
- Compatibility with white-light illumination systems
Perforated beam splitters are commonly used in illumination systems, projection optics, imaging instruments, and legacy optical assemblies requiring broadband beam splitting performance.
Beam Splitter Coatings
Beam splitter performance depends heavily on coating design. Modern optical coatings determine reflection, transmission, polarization behavior, wavelength range, and laser damage threshold.
Polarizing Coatings
Designed to separate orthogonal polarization states while maintaining high transmission efficiency.
Dielectric Coatings
Utilize multilayer thin-film interference structures to achieve precise reflection and transmission characteristics across specific wavelength bands.
Metallic Coatings
Provide broadband reflection performance across wide spectral ranges and are commonly used when wavelength flexibility is required.
When selecting a beam splitter coating, engineers typically consider:
- Reflection/transmission ratio
- Operating wavelength range
- Polarization sensitivity
- Laser damage threshold
- Environmental durability
Proper coating selection helps maximize optical efficiency, reduce unwanted losses, and improve long-term system performance.
Frequently Asked Questions
What is a beam splitter used for?
A beam splitter divides, combines, or redirects light within an optical system. Common applications include interferometry, microscopy, laser systems, spectroscopy, machine vision, semiconductor inspection, and photonics research.
How do I select the right beam splitter?
The optimal beam splitter depends on wavelength range, polarization requirements, reflection/transmission ratio, laser power, wavefront quality, and environmental conditions. Cube beam splitters are often preferred for precision imaging and interferometry, while plate beam splitters are commonly selected for high-power laser applications.
What is the difference between a cube beam splitter and a plate beam splitter?
Cube beam splitters provide equal optical path lengths, excellent alignment stability, and reduced ghost reflections. Plate beam splitters offer lower cost, larger apertures, and higher laser damage thresholds, making them suitable for high-power laser systems.
What is a dichroic beam splitter?
A dichroic beam splitter separates light based on wavelength rather than intensity. Using multilayer dielectric coatings, it reflects selected wavelength bands while transmitting others, making it ideal for fluorescence microscopy, biomedical imaging, and laser wavelength combining.
What is a non-polarizing beam splitter?
A non-polarizing beam splitter (NPBS) divides incident light while maintaining nearly equal reflection and transmission characteristics for both s- and p-polarized light. It is commonly used in interferometry, spectroscopy, microscopy, and machine vision systems where polarization-independent performance is required.
What reflection/transmission ratio should I choose?
Common beam splitter ratios include 50/50, 70/30, and 90/10. The optimal ratio depends on detector sensitivity, optical power distribution, signal-to-noise requirements, and overall system architecture. Custom ratios are also available for specialized applications.
In Summary
Beam splitters are critical optical components used to manage light propagation in imaging, spectroscopy, laser processing, metrology, semiconductor inspection, and photonics systems. Selecting the optimal beam splitter requires balancing reflection/transmission ratio, polarization response, wavelength range, wavefront quality, and environmental durability.
Whether your application requires cube, plate, polarizing, non-polarizing, or dichroic beam splitters, understanding these tradeoffs is essential for maximizing overall optical system performance.
